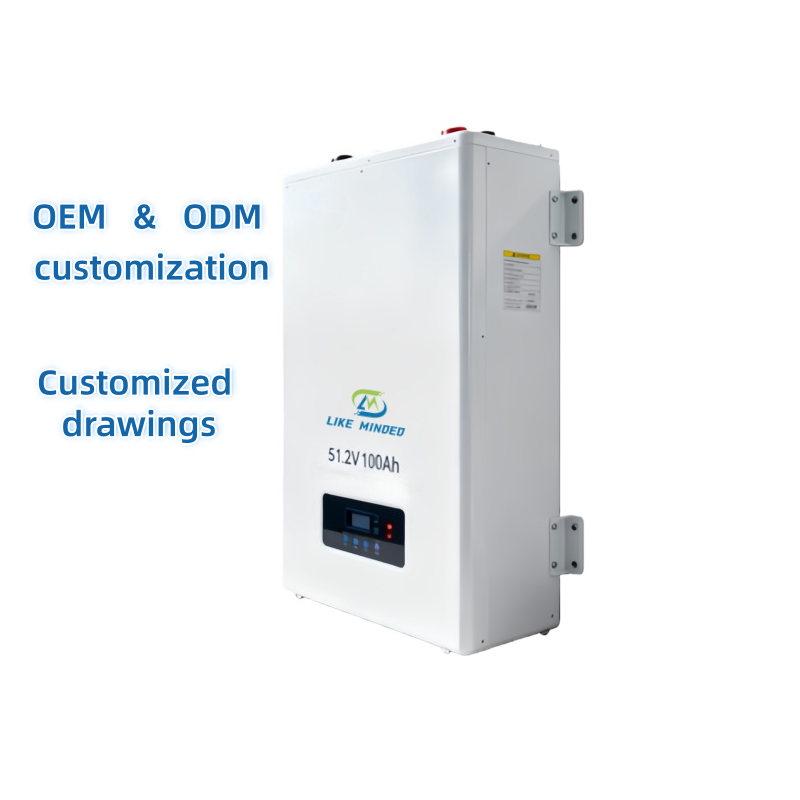

Wall-Mounted 51.2V 100Ah Lithium-Ion Battery

Wall-Mounted 51.2V 100A Lithium-Ion Battery with Advanced BMS

*High-Performance Lithium Solar Battery

The 51.2V 100Ah LiFePO4 solar lithium battery by LIKEMINDED delivers reliable and efficient energy storage for solar power systems. Built with high energy density and Grade A LiFePO4 cells, it provides 8000 cycles lifespan and stability.

*Advanced Battery Management System (BMS)

Equipped with a sophisticated BMS, this battery ensures safety by preventing overcharging, overheating, and short-circuiting. The BMS optimizes efficiency and extends the battery’s lifespan, making it a secure choice for both residential and commercial solar installations.

*Eco-Friendly and Long-Lasting

The battery’s environmentally friendly lithium phosphate chemistry offers a sustainable energy solution. Its long cycle life means less maintenance and fewer replacements, making it a smart investment for renewable energy systems.

*Designed for Versatile Solar Applications

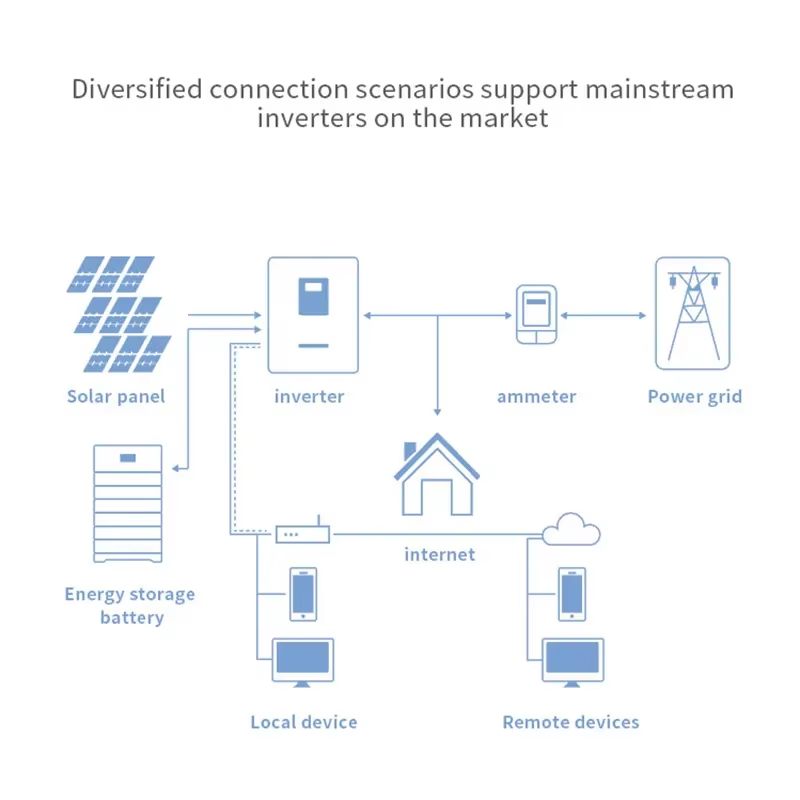

Ideal for home, commercial, or industrial settings, this battery pack serves well in off-grid solar systems, backup power, or grid-tied applications. Its compact design and efficient energy output suit a variety of energy storage needs.

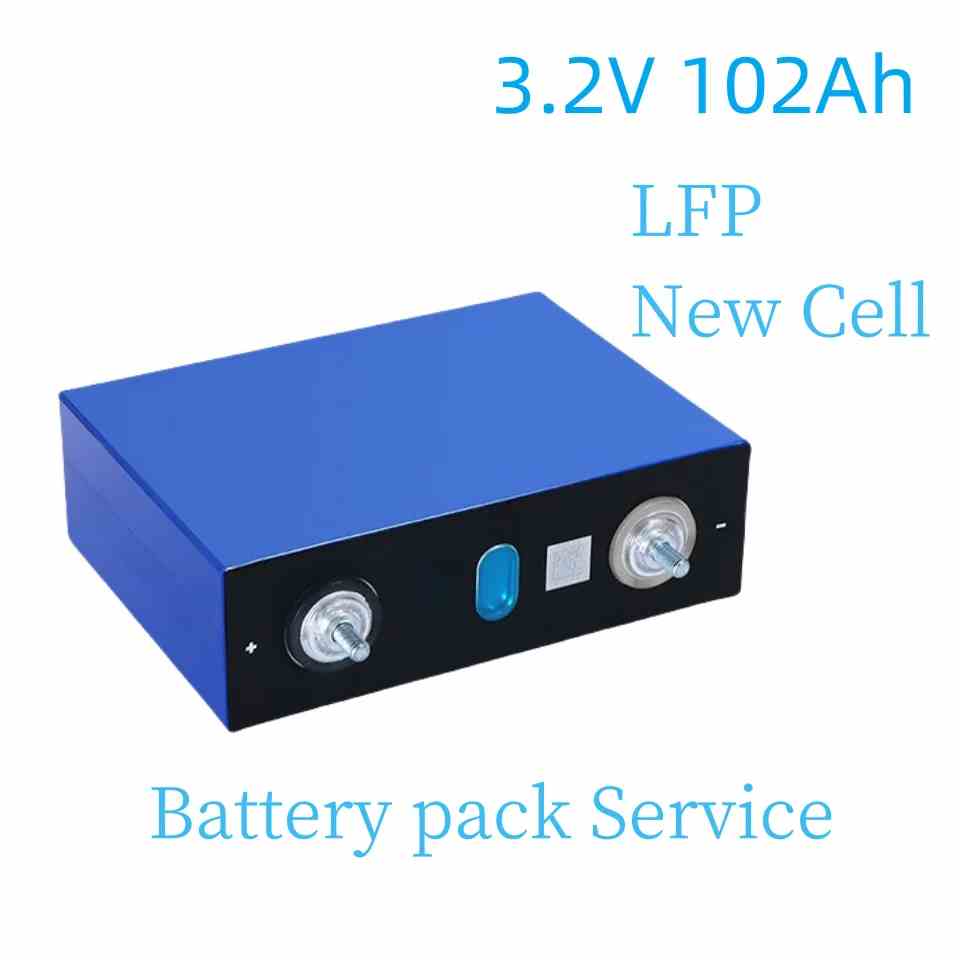

3.2V 102Ah – Gotion Cells

Model: IFP50160116A-102Ah

Rated Voltage: 3.2V

Nominal Capacity: 102Ah

Cell Weight: 1926g

Internal Resistance: 0.27mΩ – 0.4mΩ

Grade A Cell

10000+ cycles lifespan

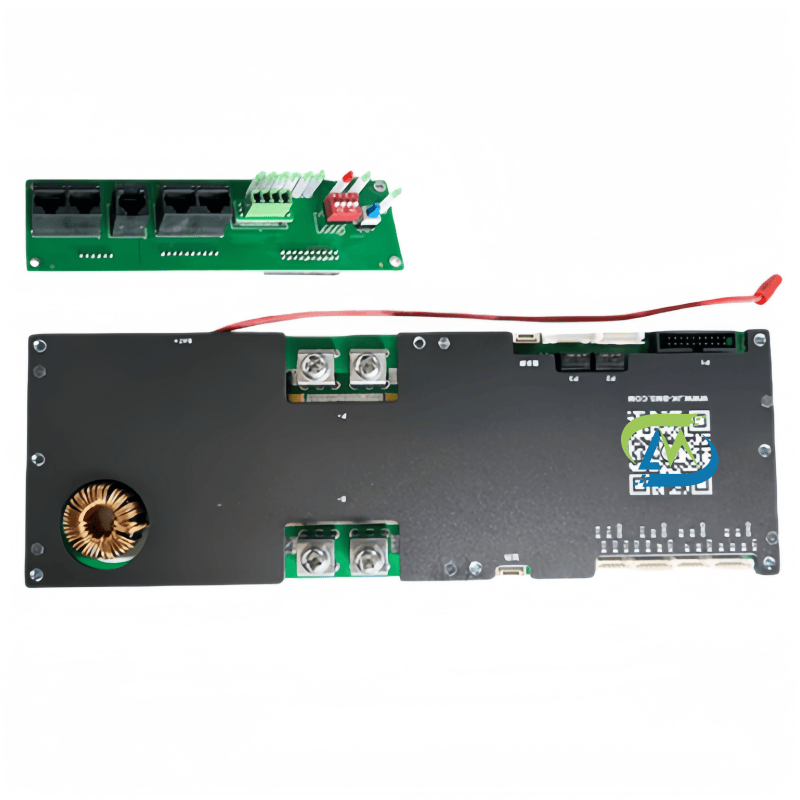

Smart BMS

Charge/Discharge: 100A

Balance Current: 1A

Battery Strings: 8S–16S

Function: RS485 / RS232 / CAN / BT

Battery Types: Li-ion / LiFePO4 / LTO

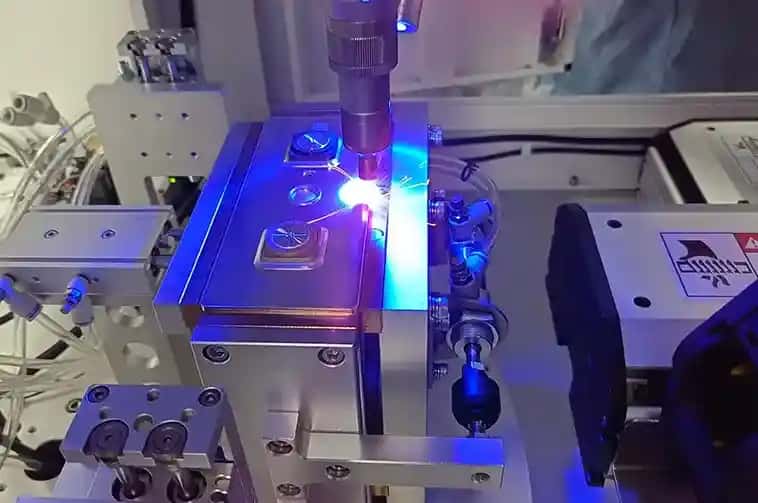

Laser Welding

High precision, strong welds, non-contact process. Enhances battery safety and improves production efficiency.





Specifications

Model	51.2V100Ah
Rated Voltage	51.2V
Nominal Capacity	100Ah -102Ah
Charge Voltage	40-58.4V
Discharge Voltage	40-58.4V
Cell Configuration	16S1P
Battery System Discharge Current (Standard)	50A
Battery System Discharge Current (Max)	100A
Peak Charge/Discharge Current(A)	120(2S)
Communicaiton	CAN/RS-485/RS-232
Working Temperature	0℃~55℃ Charge , -10℃ ~55℃ Discharge
Shelf Temperature	20℃~45℃
Certification	CE/IEC/UL/UN38.3/MSDS
Design Life	10 YEARS
Size(mm)	445*355*225mm / Customization
Weight	40kg
Cycle Life	>8000
