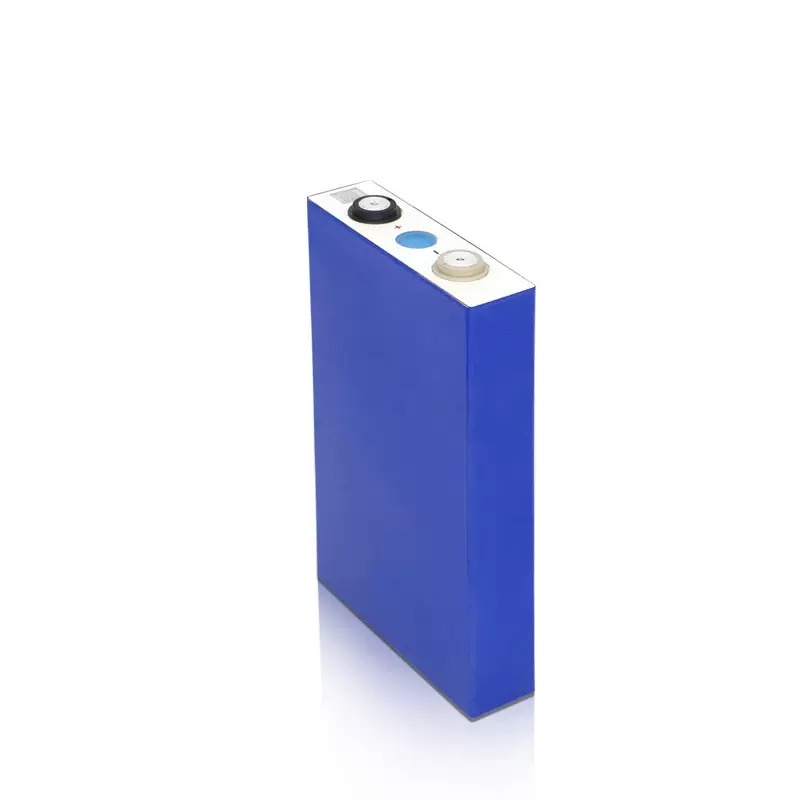

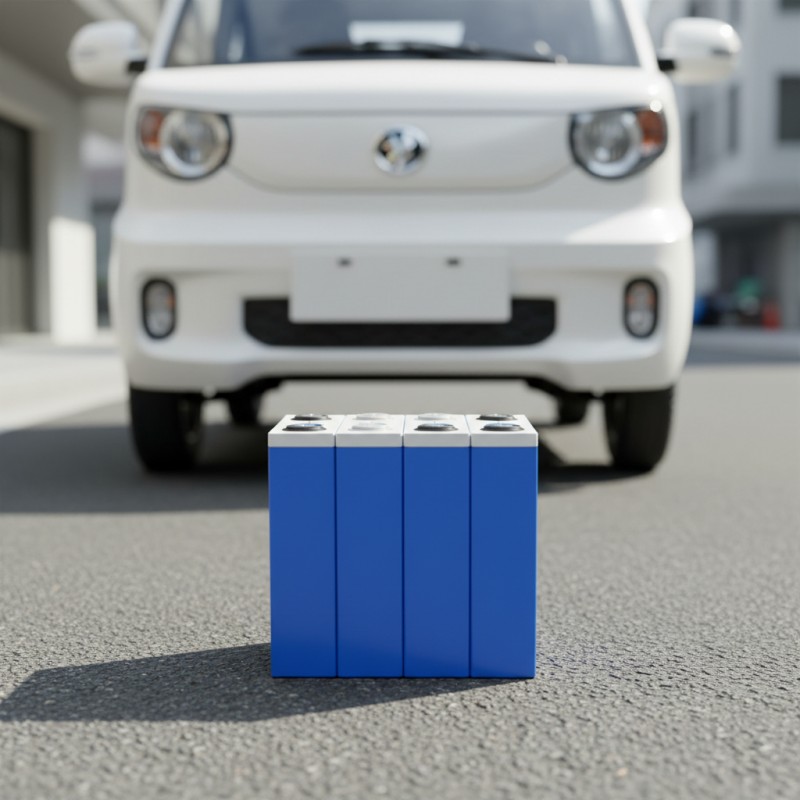

LF105 Prismatic LFP Battery Cell is a 3.2V 105Ah lithium iron phosphate cell with high safety, long cycle life, wide temperature adaptability and stable discharge performance. It is widely used in energy storage systems, electric power, industrial equipment and backup power supply.
Item No :
Likeminded LF105 Prismatic LFP Battery CellOrder(MOQ) :
10PCSPayment :
T/T,L/C,Credit Card,PayPalProduct Origin :
ChinaColor :
BlueService :
OEM /ODMShipping Port :
Shanghai/Guangzhou/Shenzhen/NingboLead Time :
3-7 DaysWeight :

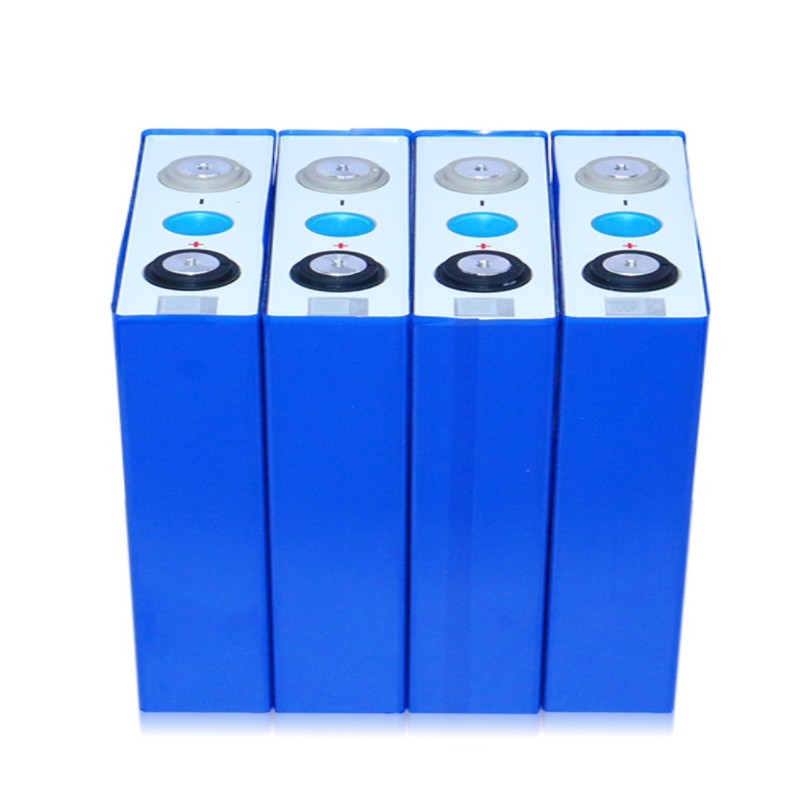

1980g±60gLF105 Prismatic LFP Battery Cell uses square aluminum shell and LFP chemistry, with stable performance and high safety. Nominal 3.2V, 105Ah capacity, low internal resistance, efficient discharge.
3.2V 105Ah LiFePO4 Cell supports 0.5C standard charge/discharge, 2C instantaneous charge and 3C instantaneous discharge. Wide working temperature, good low-temperature performance.
High Safety LFP Energy Storage Cell passes multiple safety tests, no fire or explosion. Long cycle life, reliable for long‑term use.
3.2V 105Ah Prismatic LiFePO4 Cell
Premium 105Ah LiFePO4 cell for energy storage with high safety, long cycle lifespan and stable performance. Suitable for home solar storage, commercial backup power and industrial battery pack production.
Key Parameters
| Nominal Voltage | 3.2V |
| Nominal Capacity | 105.0Ah |
| Charge Cut-off | 3.65V |
| Discharge Cut-off | 2.5V |
| Cycle Life | 4000 cycles (25℃) |
| Operation Temp | -35℃~65℃ |
| Net Weight | 1980g±60g |
| Dimension | 130.30mm*36.35mm*200.50mm |
| DC Internal Resistance | ≤1.8mΩ |
| Charging Temperature | -10℃ ~ 65℃ |
| Discharging Temperature | -35℃ ~ 65℃ |
| Storage Temperature | 0℃ ~ 35℃ |
| Initial AC Internal Resistance | 0.32mΩ±0.05mΩ |
| DC Internal Resistance | ≤1.8mΩ |
| Standard Charge Current | 0.5C |
| Standard Discharge Current | 0.5C |
Product Features
High safety LFP chemistry, stable and reliable
Stable output LFP battery cell with consistent voltage
Long cycle life up to 4000 cycles
Excellent low‑temperature discharge performance
Low internal resistance, high energy conversion efficiency
Standard module size, easy for assembly
Good storage stability and high capacity recovery
Wide application scenarios and strong compatibility
Safety Performance
Overcharge test: No fire, no explosion
Over‑discharge test: No fire, no explosion
External short circuit: No fire, no explosion
Crush test: No fire, no explosion
Heating test (130℃): No fire, no explosion
Temperature cycling test: Safe and stable
Application Scope
Home energy storage system
Industrial & commercial energy storage
Solar & wind energy storage system
Electric vehicles & light electric power
UPS & backup power supply
Industrial power equipment
Mobile power & emergency power
Our Services
Support OEM & ODM customization
Provide technical data sheet and drawings
Professional battery application guidance
Stable batch supply capacity
Complete pre‑sales and after‑sales support
Quality inspection and reliability test
Packaging & Shipping
Our Company
Anhui Likeminded New Energy Technology Co., Ltd. is a leading comprehensive new energy manufacturer and supplier based in Hefei, Anhui Province, China. We specialize in the R&D, manufacturing, and sales of lithium-ion cells, battery modules, energy storage batteries, solar panels, inverters, and UPS systems, with a complete industrial chain covering everything from core component production to finished product integration.
Our core advantage lies in high-quality new energy products with stable performance, which have been widely applied in electric scooters, electric golf carts, forklifts, residential energy storage, commercial backup power, and off-grid power systems. Supported by standardized production workshops, advanced automated assembly lines, and a full set of quality testing equipment, we maintain a stable monthly production capacity to meet both small-batch customized orders and large-scale bulk deliveries. Strict ISO quality management systems are implemented throughout every production process.
Our core team consists of industry professionals with over 10 years of experience in the new energy sector, supported by a dedicated international marketing and technical team. We provide one-stop customized solutions, with OEM/ODM services available to adapt products to different regional standards and application scenarios. Flexible low MOQ and pre-production sample testing are also offered to support your project validation.
All our products undergo rigorous multi-stage quality testing and inspection, ensuring stable performance and long-term reliability. We provide comprehensive after-sales support to address any technical or quality concerns, giving you peace of mind with every purchase.
FAQ
1. What is the nominal voltage of LF105 Prismatic LFP Battery Cell?
Nominal voltage is 3.2V, charge cut‑off voltage is 3.65V.
2. What is the cycle life of Long Cycle Life 105Ah Battery?
It can reach 4000 cycles at 25℃ with 80% capacity retention.
3. Can Low Temp 105Ah LFP Power Cell work in cold environments?
Yes, it can discharge stably at -35℃ and charge normally at -10℃.
4. Is High Safety LFP Energy Storage Cell suitable for energy storage system?
Yes, it has high safety, long life and stable performance, ideal for energy storage.
