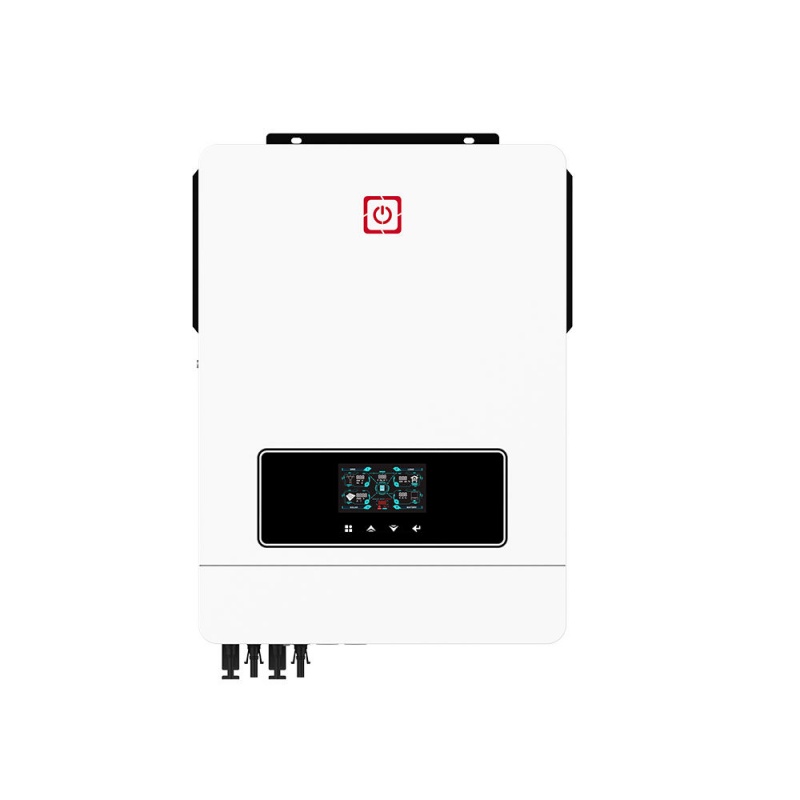

Solar Charger Low Frequency Hybrid Inverter

Our Solar Charger Low Frequency Hybrid Inverter integrates DC-to-AC inversion, solar charging, and grid interaction in one compact unit. Boasting a robust low-frequency design, it ensures stable performance for off-grid/hybrid systems, with high conversion efficiency and seamless switching between solar, battery, and grid power. Equipped with multiple protections (overload, short-circuit, over-temperature), it’s ideal for residential backup power and small-scale off-grid solar setups, delivering reliable, eco-friendly energy solutions for home and light commercial use.

Item No :
DC/AC Inverters
Cell Configuration :
Hybrid Inverter
Order(MOQ) :
1PCS
Payment :
T/T, L/C, PayPal
Product Origin :
China
Color :
customization
Service :
1 Years
Shipping Port :
Shang
Lead Time :
30 Days
Weight :
6.8Kg

Categories

New Products

Product Details

Solar Charger Low Frequency Hybrid Inverter

◆Pure Sine Wave Solar Hybrid Inverter,

◆Be able to run without battery,

◆One-key restoring to factory default settings:

◆With function ofLithium battery automatic activation by PV;

◆Bulit-in 160A MPPT solar controller(for 10.2KW), 140A(for 7.2KW);

◆ Wide PV input voltage range (90-450VDC);

◆ Built-in anti-dusk kit for harsh environment;

◆Smart battery charge design to maximize battery lifespan;

◆Dual AC output;

◆WlFl available for lOS and Android systems.

Capacity	4KW
Parallel Capability	YES,12units
Input
Nominal Voltage	230VAC
Acceptable Voltage Range	170-280 VAC (For Personal Computers),90-280 VAC (For Home Appliances)
Frequency	50/60HZ (Auto sensing)
Output
Nominal Voltage	220/230VAC ± 5%
Surge Power	10000VA
Frequency	50Hz/60Hz
Waveform	Pure Sine Wave
Transfer Time	10ms (For Personal Computers) ; 20ms (For Home Appliances)
Peak Effiffifficiency (PV to INV)	97%
Peak Effiffifficiency (Battery to INV)	93%
overload Protection	5s@>=150% load; 10s 110%~150% load
Crest Factor	3:1
Admissible Power Factor	0.6~1(inductive or capacitive)
Battery
Battery Voltage	24 VDC
Floating Charge Voltage	54 VDC
Overcharge Protection	63 VDC
Charging Method	CC/CV
Solar Charge & AC Charge
Solar Charge Type	MPPT
Max. PV Array Power	5500W
Max. PV Array Open Circuit Voltage	500 VDC
PV Array MPPT Voltage Range	120VDC~450 VDC
Maximum Solar Input Current	18A
Maximum Solar Charge Current	100A
Maximum AC Charge Current	60A
Maximum Charge Current	100A
Communication Interface	USB/RS232/Dry-contact
Environment
Operating Temperature	(-10℃~50℃)
Storage Temperature	(-15℃~60℃)
Humidity	5% to 95% Relative Humidity (Non-condensing)

Our Factory

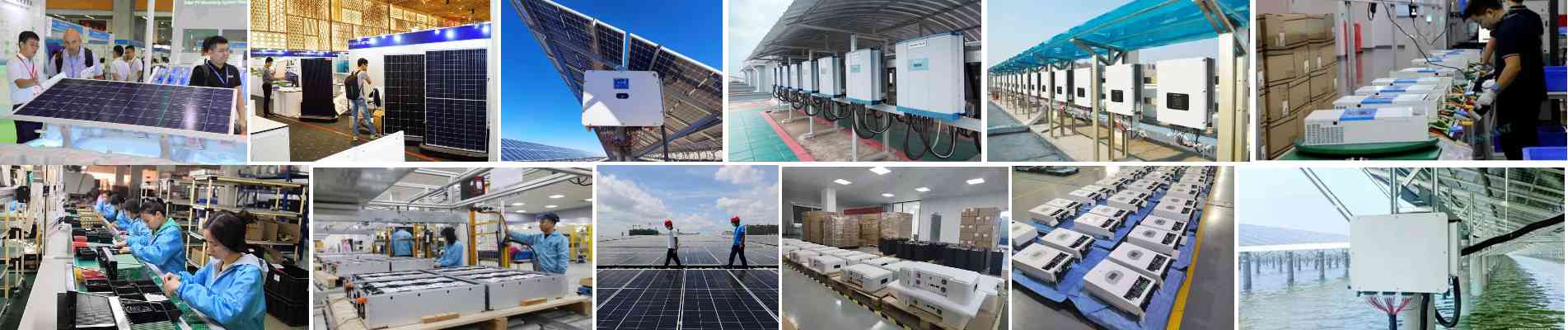

Anhui Like-minded New Energy Technology Co., Ltd. is located in Hefei City, Anhui Province, which is specialized in lithium cells, battery packs, energy storage systems, solar panels, inverters, and other commercial energy solutions.

We are a complete manufacturer and supplier of lithium batteries. Our factory is covering over 5,000 square meters. We have earned the product certifications and received support from customers both dominate and abroad.
