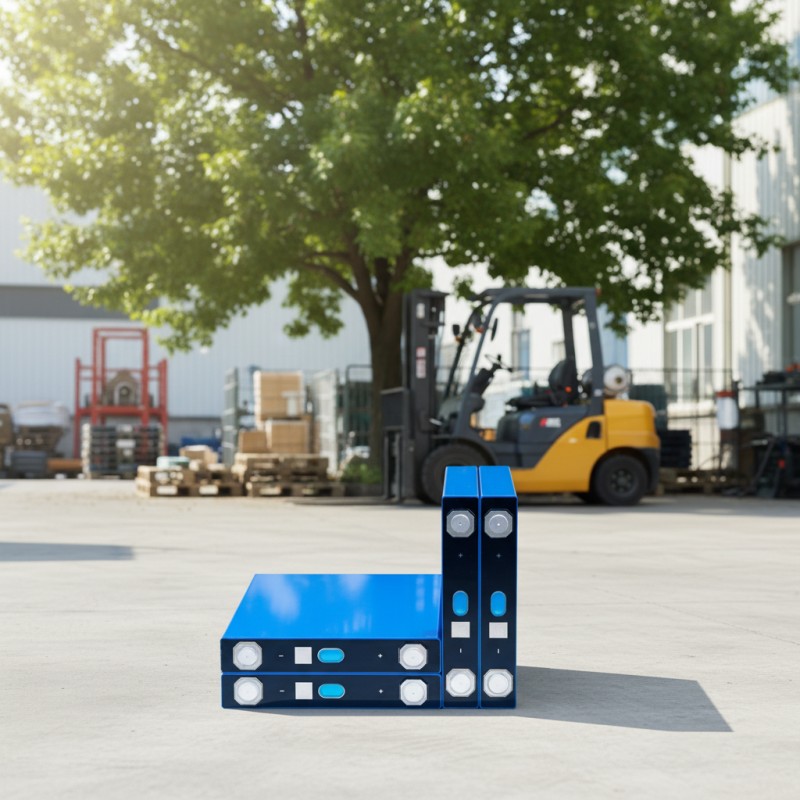

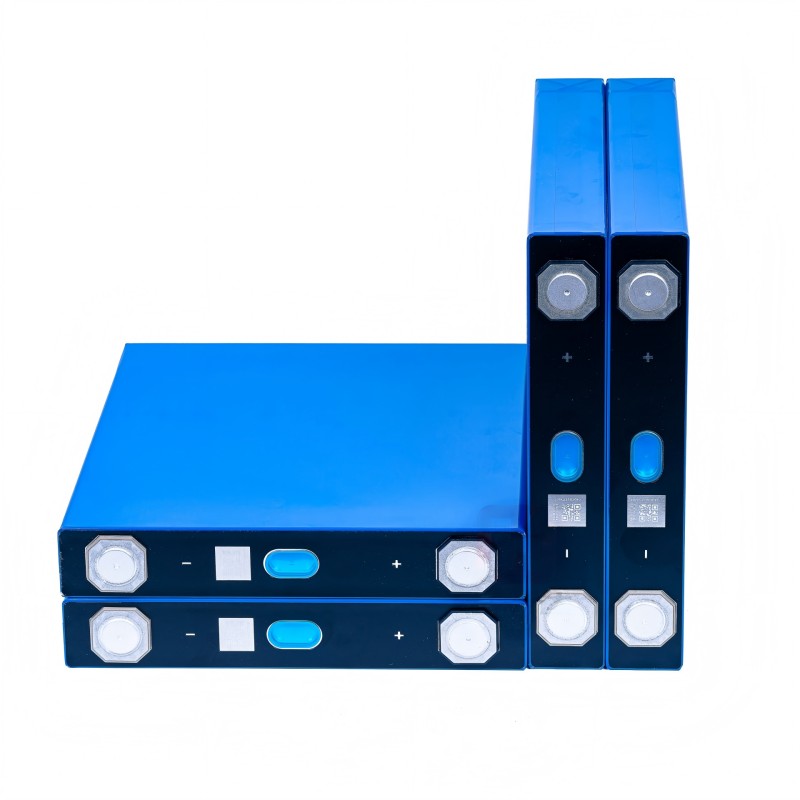

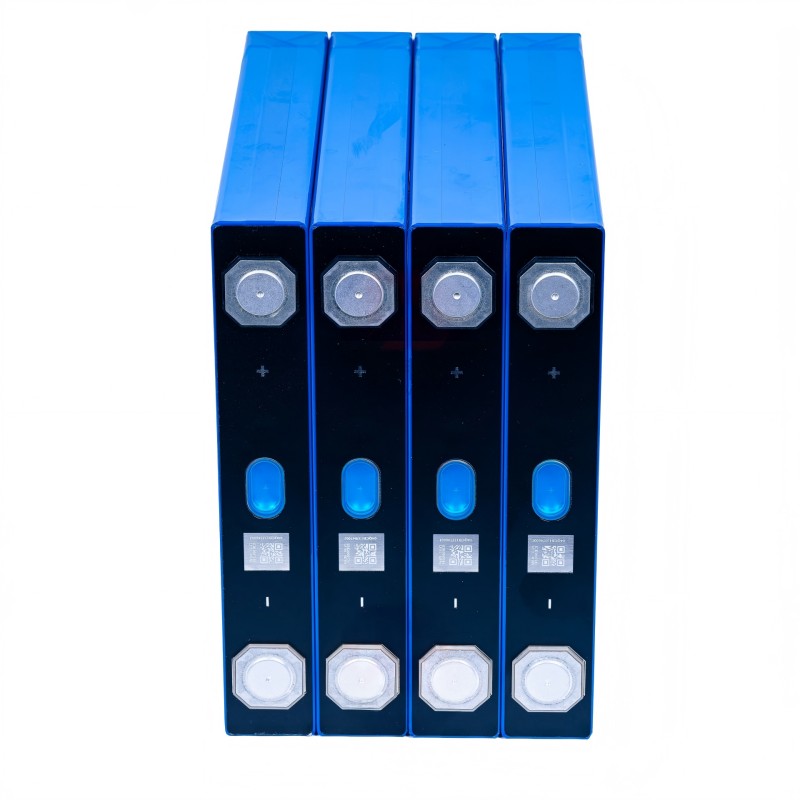

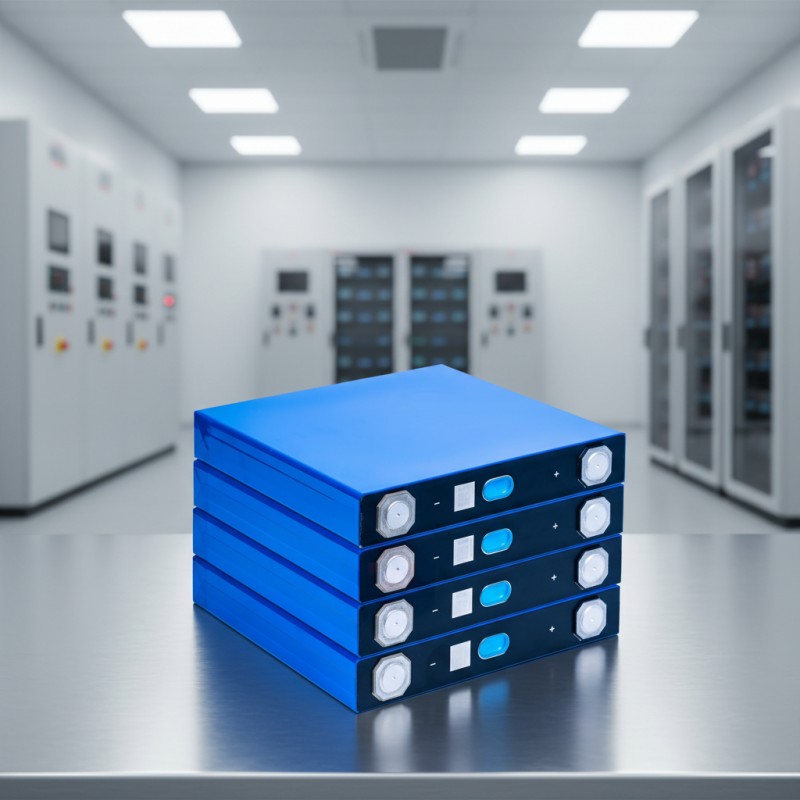

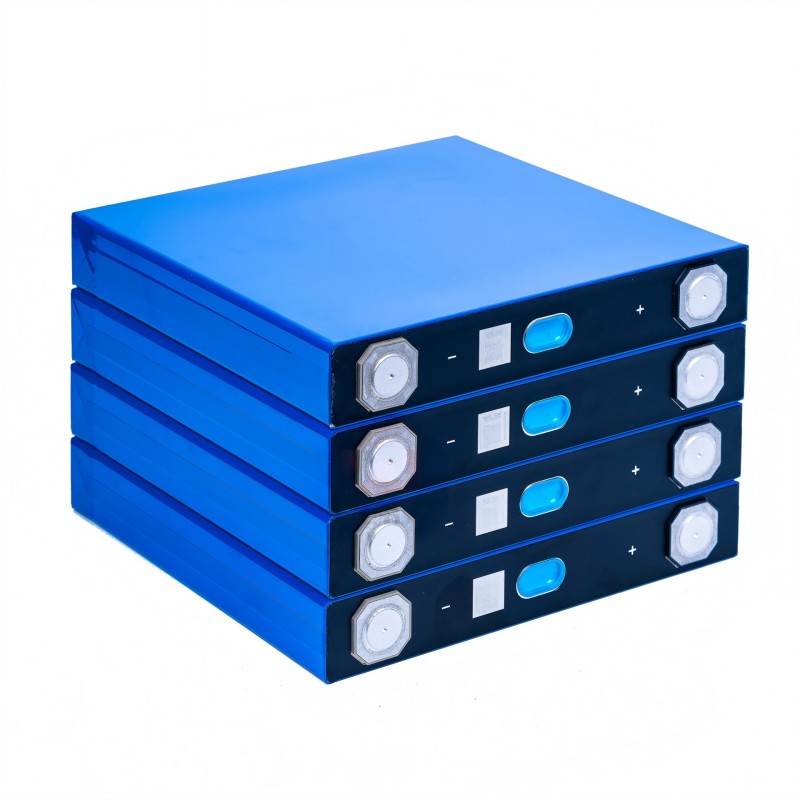

LF150 Prismatic LiFePO4 Battery Cell

LF150 is a high-performance prismatic lithium iron phosphate battery cell manufactured by EVE Power Co., Ltd., designed for large‑scale energy storage systems (BESS) , home solar storage, industrial backup power, and high‑voltage battery packs. With a nominal capacity of 150.0Ah and stable 3.22V nominal voltage, this 150Ah LFP cell provides outstanding safety, long cycle life, and excellent high/low‑temperature performance. It is widely used in container energy storage systems, rack‑mounted lithium battery systems, and liquid cooling energy storage solutions.

Key Specifications

Product Features

Ultra-long Cycle Life: LF150 supports 4000 cycles at 25℃ and 2000 cycles at 45℃ to 80% SOH, greatly reducing system replacement cost.

High Safety Structure: Adopts LiFePO4 chemistry, passes overcharge, over-discharge, external short circuit, crush, heating, and temperature cycling tests – no fire, no explosion.

Wide Temperature Adaptation: Stable discharge from -35℃ to 65℃, suitable for global harsh environments.

Low Internal Resistance: 0.40mΩ AC internal resistance ensures high output efficiency and low heat generation.

Strong Expansion Compatibility: Ideal for high voltage stacked batteries, parallel battery packs, and modular ESS.

Stable Storage Performance: Excellent capacity retention under long-term storage with ≥98% capacity recovery after 28 days at 25℃ (50% SOC), suitable for backup power scenarios.





Performance Advantages



LF150 150Ah lithium battery has obvious advantages in energy storage applications:



Low-temperature performance: Maintains ≥85% capacity at 0℃ and ≥75% capacity at -20℃ (1C discharge to 2.0V cut-off), ensuring reliable operation in cold regions.

High-temperature performance: Maintains ≥97% capacity at 45℃ and ≥97% capacity at 55℃ (1C discharge).

Rate discharge capability: 1C discharge capacity retention ≥98% compared to 0.5C.

High capacity recovery: After 28 days of storage at 25℃ (100% SOC), capacity recovery ≥97% ; after 28 days at 45℃ (50% SOC), capacity recovery ≥97% .

Low swelling force: BOL swelling force ≤3000 N, EOL (80% SOH) swelling force ≤30000 N, compatible with rack installation and containerized energy storage.

Recommended module compression force: 3000 N ~ 7000 N (instantaneous max 10000 N).

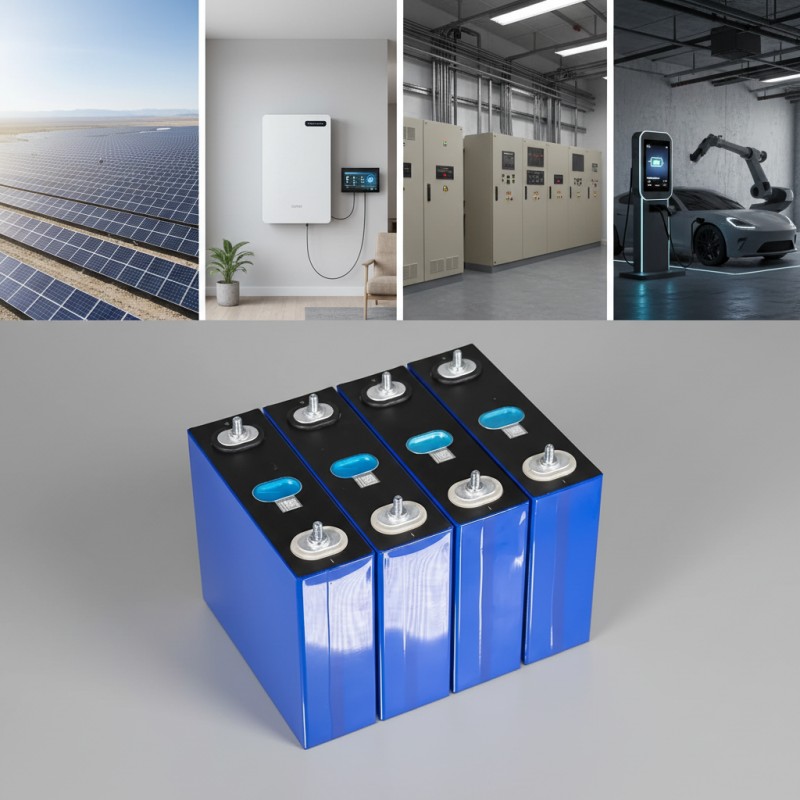

Application Scenarios



Grid-scale BESS (Battery Energy Storage System)

Home solar power system with battery storage

500kW / 800kWh lithium battery container

Industrial & commercial energy storage

Liquid cooling energy storage system

High voltage stacked & rack-mounted battery packs

Residential & industrial integrated energy system

Industrial backup power

•
•
•







Quality & Safety



All LF150 cells are produced under strict quality control. Each battery undergoes full performance testing before delivery. The product meets GB 38031-2020 safety standards (electric vehicle traction battery safety requirements) for the following tests:



Safety Test	Result
Over-discharge	No fire, no explosion
Over-charge	No fire, no explosion
External Short-circuit	No fire, no explosion
Heating (130℃)	No fire, no explosion
Temperature Cycling (-40℃ to 85℃)	No fire, no explosion
Crush Test	No fire, no explosion



With excellent abuse resistance and thermal stability, it provides safe and stable power output for long-term operation. Note: A Battery Management System (BMS) is required to monitor voltage, current, and temperature. Do not mix different cell models in the same battery system.



Packaging & Shipping

Our Company

Anhui Likeminded New Energy Technology Co., Ltd. is a leading comprehensive new energy manufacturer and supplier based in Hefei, Anhui Province, China. We specialize in the R&D, manufacturing, and sales of lithium-ion cells, battery modules, energy storage batteries, solar panels, inverters, and UPS systems, with a complete industrial chain covering everything from core component production to finished product integration.

Our core advantage lies in high-quality new energy products with stable performance, which have been widely applied in electric scooters, electric golf carts, forklifts, residential energy storage, commercial backup power, and off-grid power systems. Supported by standardized production workshops, advanced automated assembly lines, and a full set of quality testing equipment, we maintain a stable monthly production capacity to meet both small-batch customized orders and large-scale bulk deliveries. Strict ISO quality management systems are implemented throughout every production process.

Our core team consists of industry professionals with over 10 years of experience in the new energy sector, supported by a dedicated international marketing and technical team. We provide one-stop customized solutions, with OEM/ODM services available to adapt products to different regional standards and application scenarios. Flexible low MOQ and pre-production sample testing are also offered to support your project validation.

All our products undergo rigorous multi-stage quality testing and inspection, ensuring stable performance and long-term reliability. We provide comprehensive after-sales support to address any technical or quality concerns, giving you peace of mind with every purchase.

Contact us carolinekang@like-minded.com.cn today with your forklift model and requirements for a customized quotation! Let our reliable lithium battery for electric forklift power your operations.

Call/WhatsApp: +86 17705510726

FAQ

Q: What is the cycle life of LF150?

A: 4000 cycles at 25℃ and 2000 cycles at 45℃, maintaining 80% SOH under standard test conditions (0.5C charge/discharge with 300kgf±20kgf initial preload).

Q: Is LF150 suitable for low temperature environments?

A: Yes. It maintains ≥85% capacity at 0℃ and ≥75% capacity at -20℃ (1C discharge to 2.0V cut-off), with discharge capability down to -35℃.

Q: Is LF150 suitable for high temperature environments?

A: Yes. It maintains ≥97% capacity at 45℃ and ≥97% capacity at 55℃ (1C discharge), with charge capability up to 65℃.

Q: Can it be used in high voltage stacked battery?

A: Yes. LF150 is widely used in high voltage series/parallel energy storage packs and rack-mounted battery systems.

Q: What are the compression force requirements for module design?

A: Recommended compression force: 3000 N ~ 7000 N; instantaneous max: 10000 N. Initial preload for testing: 300kgf ± 20kgf.

Q: Do you provide wholesale service?

A: Yes. We are a China factory supporting wholesale & bulk orders, with OEM/ODM customization available.

Q: What safety standards does LF150 meet?

A: Testing referenced GB 38031-2020 (China electric vehicle traction battery safety requirements). All tests passed with no fire, no explosion.
