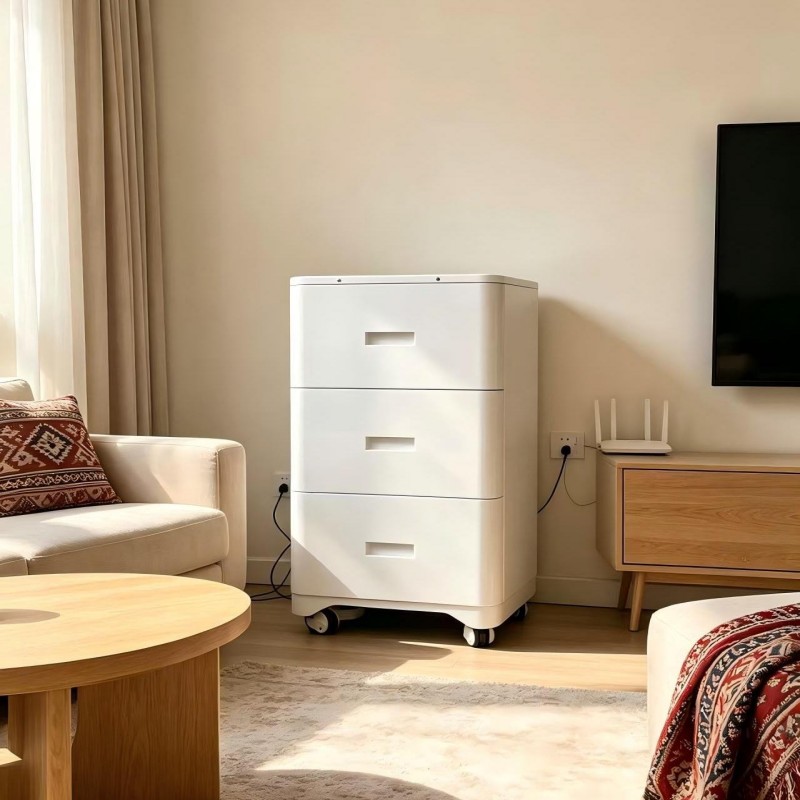

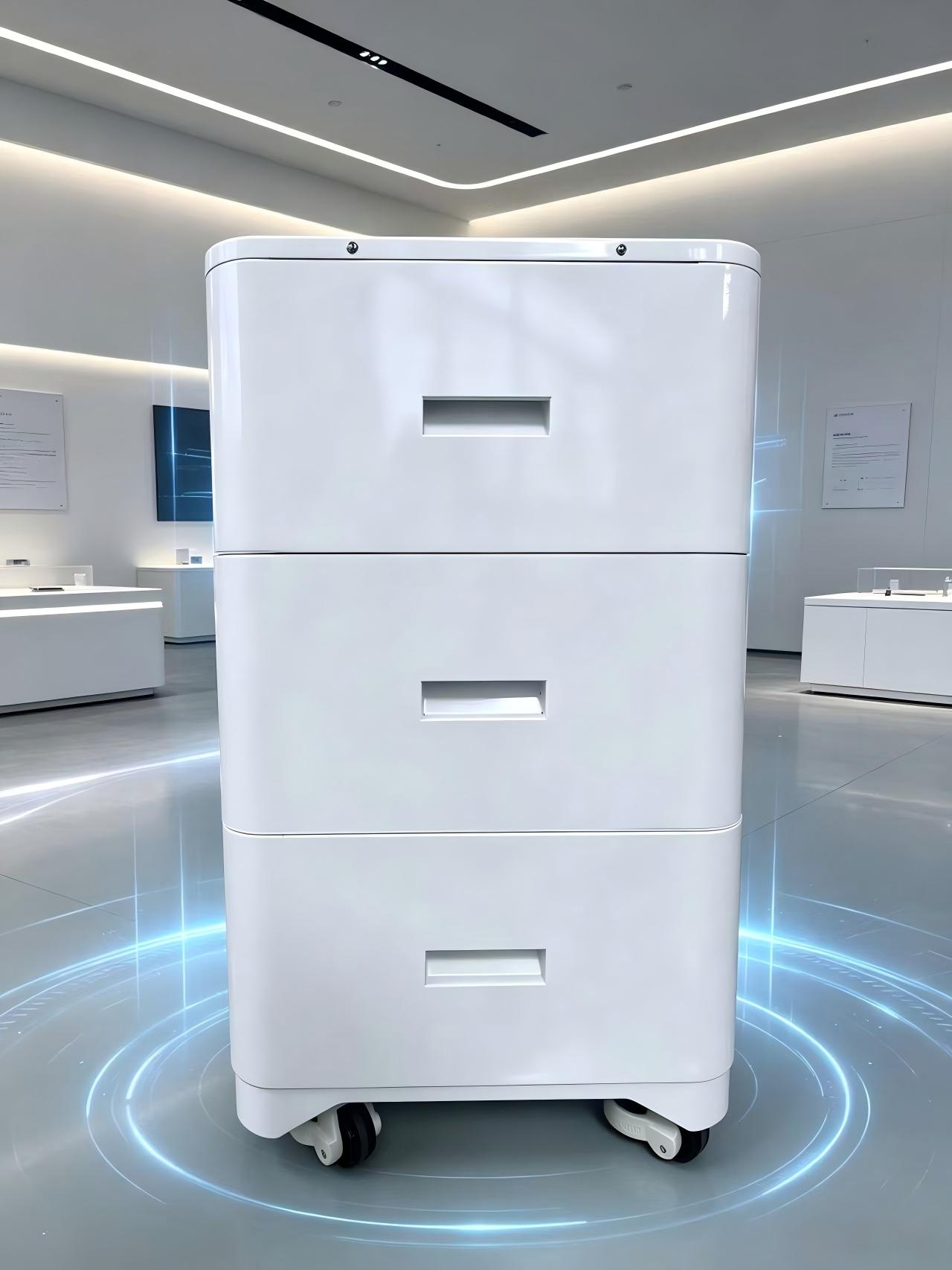

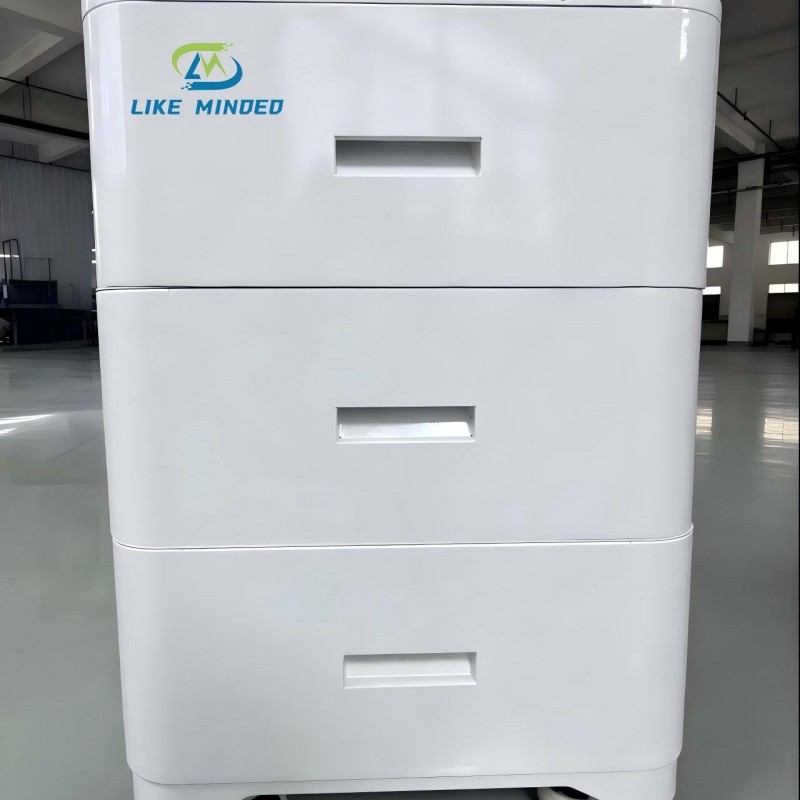

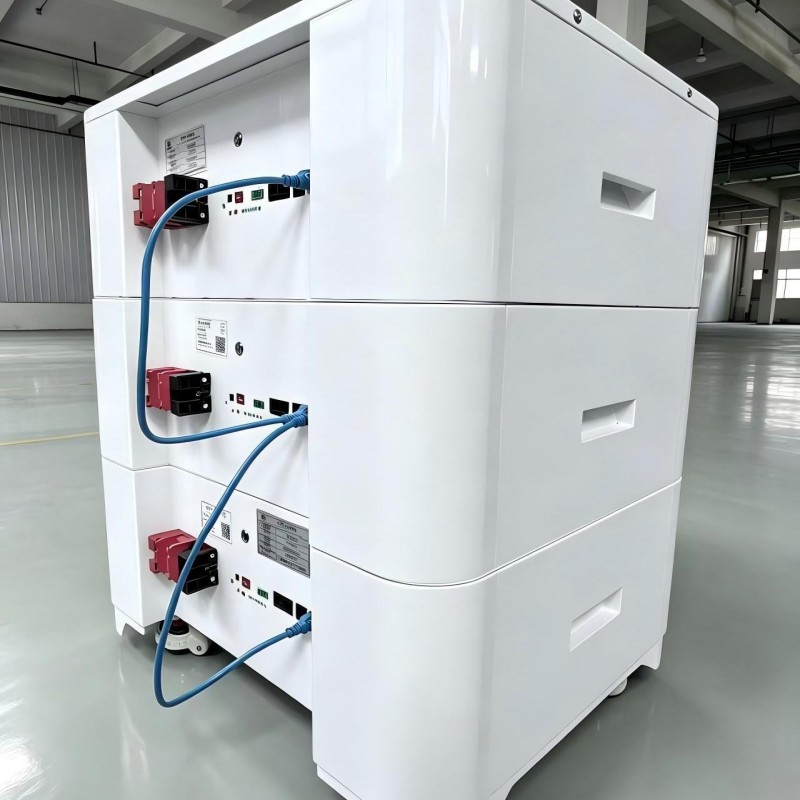

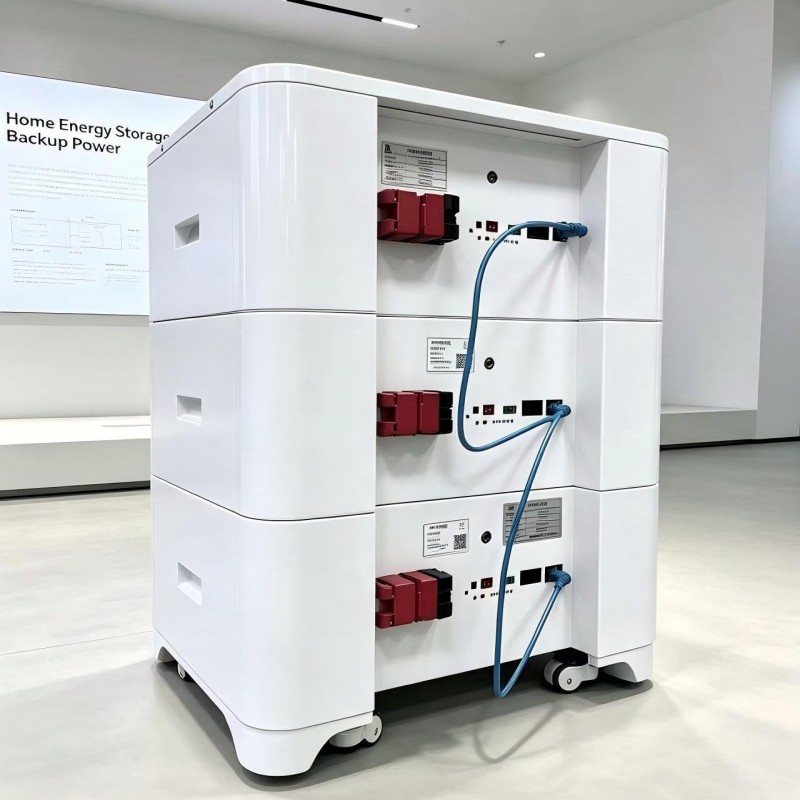

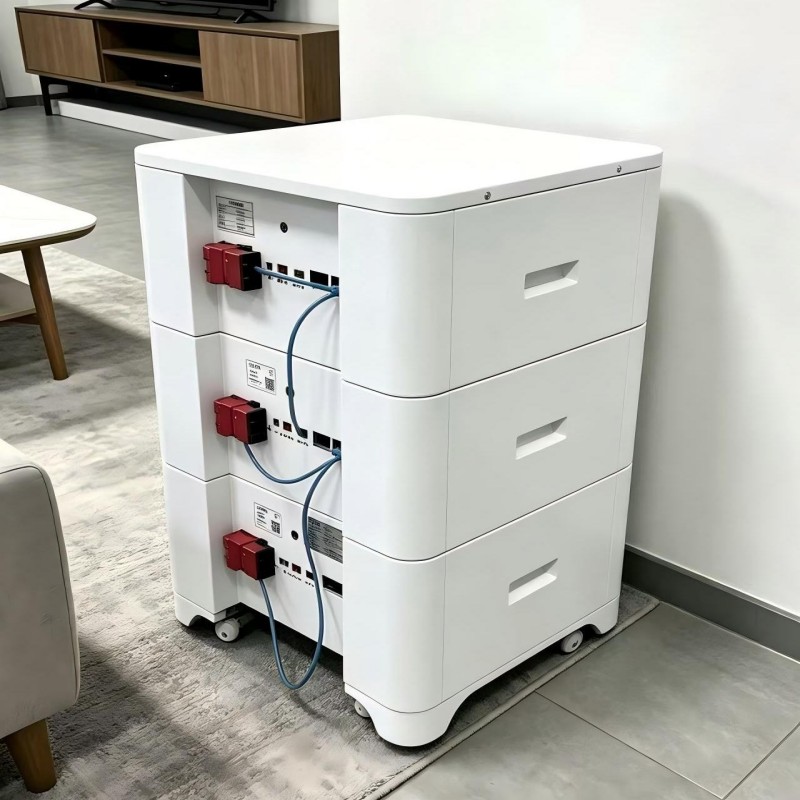

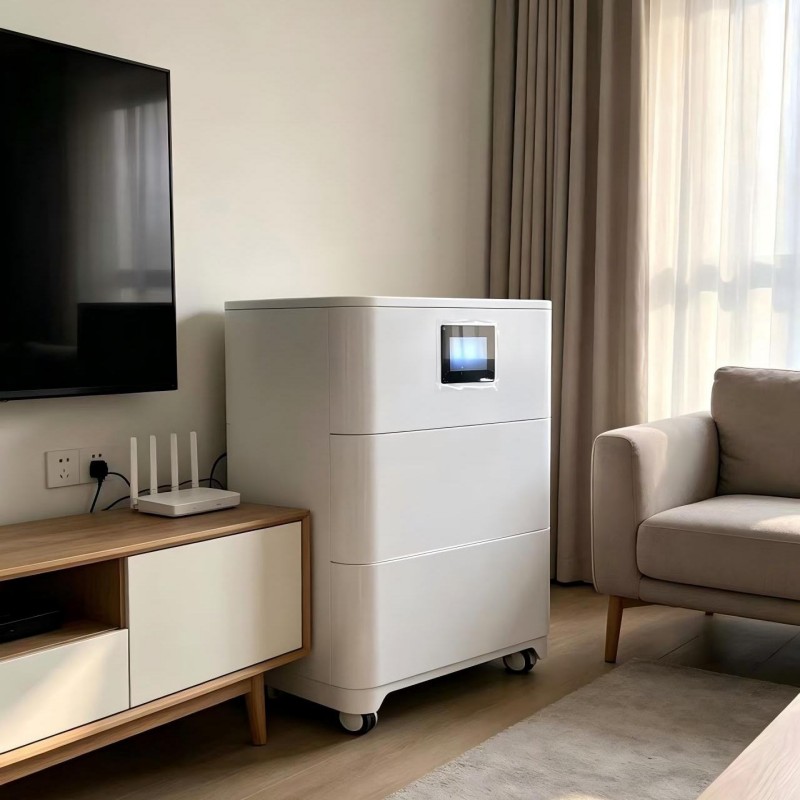

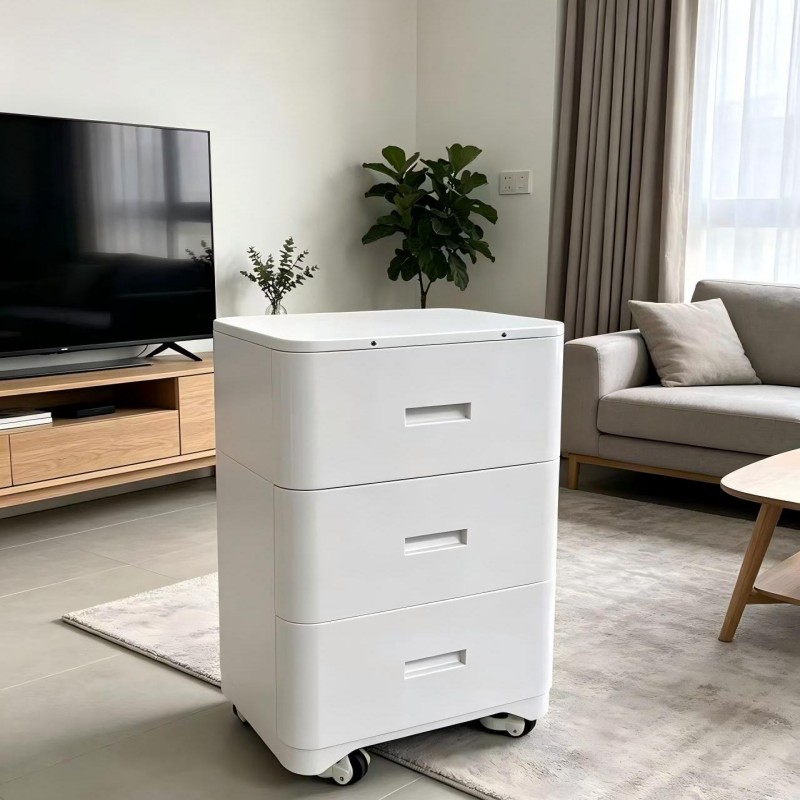

Likeminded 5.12kWh Stackable Modular LiFePO4 Battery Pack adopts modular stacking design, supporting 1‑6 modules stacked to reach max 30.72kWh capacity. This 51.2V Expandable Home Solar Storage Battery Module supports floor‑standing, wall‑mounted and 19‑inch rack installation, compatible with most mainstream hybrid solar inverters for residential & commercial energy storage projects.
Item No :
LMHC4805KCell Configuration :
LiFePO4, 51.2V 100AhOrder(MOQ) :
1 UnitPayment :
T/T,L/C,Credit Card,PayPalProduct Origin :
Anhui, ChinaColor :
WhiteShipping Port :
Shanghai/Guangzhou/Shenzhen/NingboLead Time :
15‑25 Working DaysWeight :
45 kg5.12kWh Stackable Modular LiFePO4 Battery Pack (Model LMHC4805K) from Likeminded is a modular lithium‑iron‑phosphate battery for residential and commercial energy‑storage projects. Single‑module nominal energy is 5.12kWh (51.2V,100Ah). Users can stack 1‑6 modules in parallel, expanding total capacity up to 30.72kWh without extra cabinet.
Built‑in intelligent BMS supports CAN, RS485, RS232, WiFi and Bluetooth communication protocols. It is well compatible with mainstream inverters including Deye, Growatt, Goodwe, Solis, Victron Energy and more. Three installation options are available: floor stacking, wall mounting and standard 19‑inch rack‑mount. Suitable for home PV storage, commercial peak‑valley arbitrage, off‑grid micro‑grid, base station backup and charging‑station energy storage. Remote monitoring and OTA firmware upgrade are supported.
Key Features
✅ Modular stacking design: single module 5.12kWh, expand up to 30.72kWh with 1‑6 modules
✅ High‑safety Grade‑A LiFePO4 cells, multi‑level BMS protection: over‑charge, over‑discharge, over‑current, short‑circuit, reverse‑polarity protection
✅ Long service life: ≥6000 cycles @80% DOD, design lifetime ≥15 years
✅ Flexible installation: floor stacking, wall‑mount, 19‑inch rack‑mount three‑in‑one mounting
✅ Active & passive cell balancing, automatic master‑slave address identification
✅ Wide operating temperature: charge 0‑55°C, discharge ‑20‑55°C; low‑temperature heating optional
✅ Multi‑protocol communication: CAN / RS485 / RS232, pre‑loaded inverter communication protocols
✅ Maintenance‑free, natural cooling, support remote monitoring and OTA firmware upgrade
| Item | Specification |
| Battery Chemistry | LiFePO₄ |
| Nominal Voltage | 51.2 V |
| Nominal Capacity | 100 Ah |
| Nominal Energy | 5.12 kWh |
| Usable Energy | 4.61 kWh @90% DOD |
| Operating Voltage | 44.8‑57.6 VDC |
| Max Charge Current | 75‑100 A |
| Max Discharge Current | 100 A |
| Peak Charge‑Discharge Current | 110 A (15 s) |
| Cycle Life | ≥6000 Cycles @80% DOD |
Mechanical & Environmental
| Item | Specification |
| Single Module Dimension(W×H×D) | 550 × 450 × 217 mm |
| Single Module Weight | 45 kg |
| Max Total Weight (6 modules) | 270 kg |
| Charge Temperature | 0‑55 °C |
| Discharge Temperature | ‑20‑55 °C |
| Installation | Floor stacking / Wall‑mount /19‑inch rack‑mount |
Application Field
This CAN RS485 Communication Solar Inverter Compatible Battery fits multiple scenarios: residential PV energy storage, small‑commercial peak‑valley load shifting, off‑grid micro‑grid system, telecom base station backup power and charging‑station energy storage.
FAQ
Q1: How many modules can be stacked in parallel?
A: Maximum 6 identical LMHC4805K modules can be stacked, expand total capacity up to 30.72kWh. All modules must keep same model and firmware version; module voltage difference shall be less than 0.5V before stacking.
Q2: Which inverters is this stackable battery compatible with?
A: It supports mainstream hybrid inverters from Deye, Growatt, Goodwe, Solis, Victron Energy, Sungrow, SAJ and Voltronic via CAN / RS485 communication port.
Q3: What installation ways does this battery support?
A: Three installation options: floor stacking with base, wall‑mount with optional bracket and standard 19‑inch rack‑mount installation.
Q4: What is the warranty specification for LMHC4805K battery module?
A: Warranty: 5‑10 years or 6000 cycles (whichever comes first). Within warranty period, battery capacity retains ≥70‑80% of original capacity, subject to sales contract.
Q5: Does it support remote monitoring?
A: Yes. It supports WiFi / Bluetooth communication. Users can check status and receive alarms via APP; OTA firmware upgrade is available. Local LED indicator shows RUN, ALM and SOC status.
