Likeminded 10.24kWh On‑Off Grid PCS Energy Storage System integrates LiFePO4 battery, bidirectional PCS, dual MPPT and EMS in one cabinet, cutting installation workload greatly. As a reliable manufacturer solution, this 5‑10kW LiFePO4 All‑In‑One Solar ESS Cabinet supports grid‑tie / off‑grid / UPS backup and peak‑valley arbitrage for home and small‑commercial scenarios.
Item No :
LMHCYT4810KCell Configuration :
LiFePO4, 51.2V 200AhOrder(MOQ) :
1 UnitPayment :
T/T, L/CProduct Origin :
Anhui, ChinaColor :
WhiteService :
OEM, Technical Support, After‑sales ServiceShipping Port :
Shanghai Port / Ningbo PortLead Time :
15‑25 Working DaysWeight :

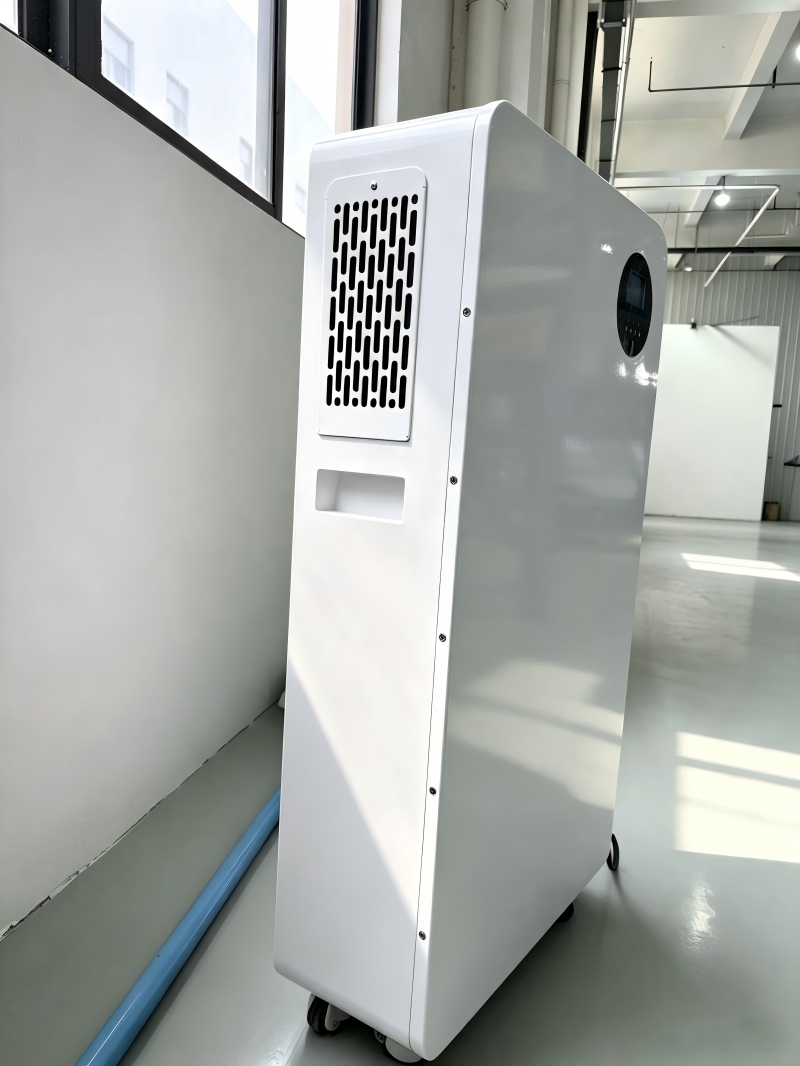

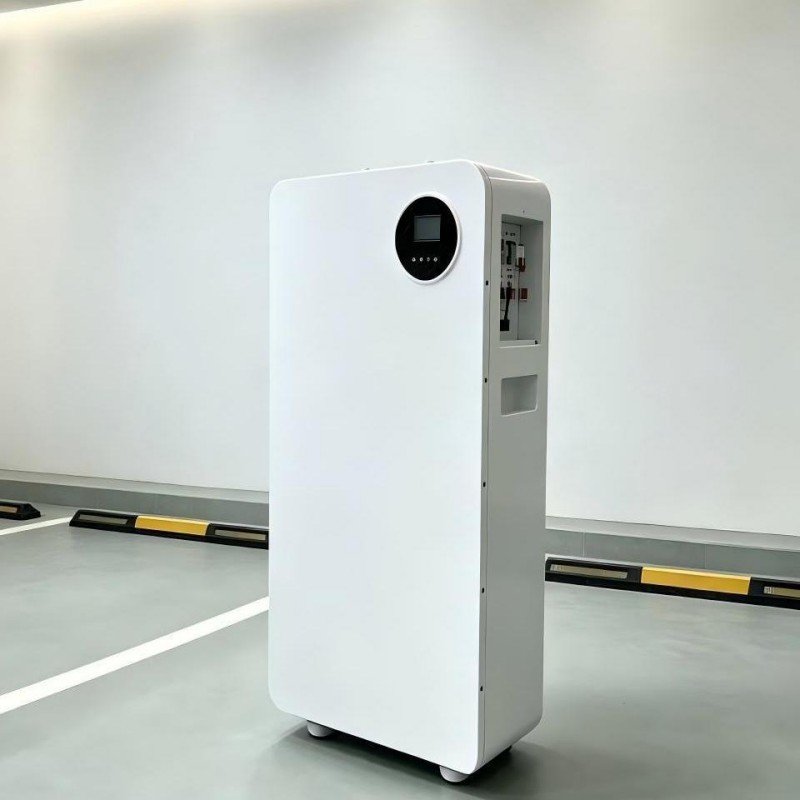

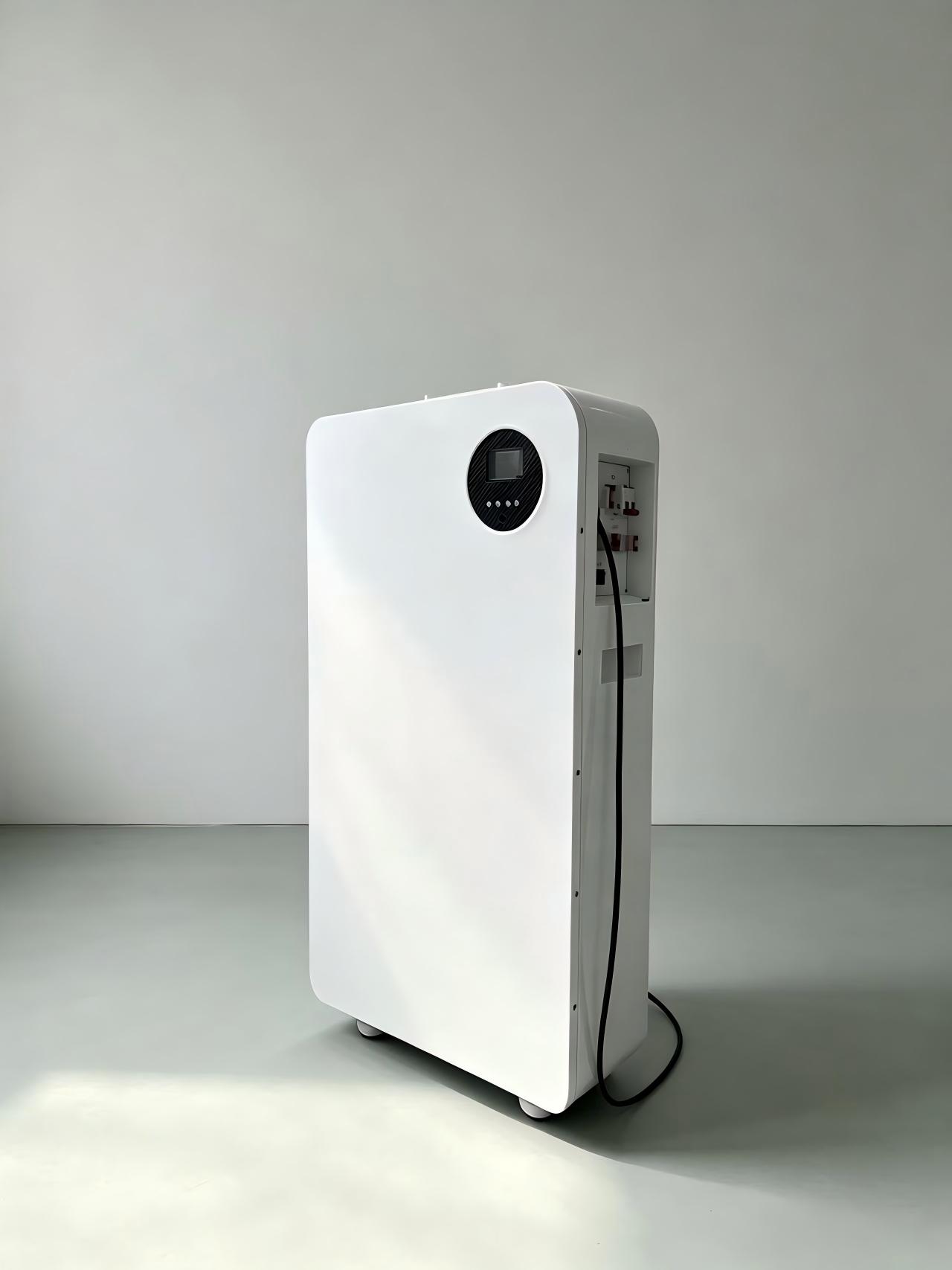

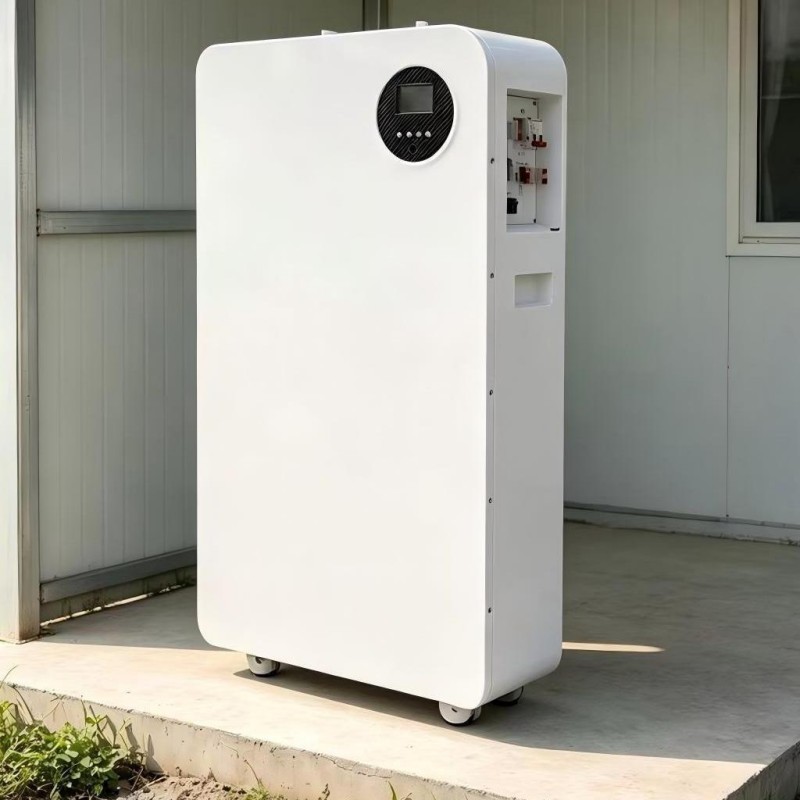

125 kg10.24kWh Hybrid PCS All‑In‑One Energy Storage System (Model LMHCYT4810K) from Likeminded is a four‑in‑one integrated energy storage device built with grade‑A LiFePO4 cells. It unifies battery pack, bidirectional PCS inverter, dual‑channel MPPT solar charger and intelligent EMS energy management system in one unit. Pre‑calibrated from factory, this unit reduces 60% field‑installation time, delivers UPS‑level seamless on/off‑grid switch within ≤10ms, making it ideal for household whole‑house backup, small‑commercial storage, off‑grid micro‑grid and charging station energy storage.
Built‑in smart BMS & EMS supports multi‑mode energy strategies: solar self‑consumption, peak‑valley arbitrage, off‑grid power supply, UPS backup and remote virtual‑power‑plant dispatch. Users monitor real‑time data via local 4.3/7‑inch LCD touch screen, WiFi/4G mobile APP and cloud platform with OTA firmware upgrade available. If you are sourcing stable expandable energy hardware, contact our sales team for detailed quotation today.
Key Features
Four‑in‑one integrated design: Battery + PCS + MPPT + EMS, pre‑configured at factory
UPS‑grade seamless switch: on‑grid / off‑grid transfer time ≤10ms
High‑safety LiFePO4 battery, multi‑layer BMS & PCS hardware protection
Dual independent MPPT, max PV input power 8.5kW, tracking efficiency ≥99.9%
Long service life: ≥6000 cycles @80%DOD, design lifetime ≥15 years
Flexible parallel expansion: up to 9 units parallel for power & capacity scaling
Wide operating temperature ‑20~55°C, intelligent air cooling, noise ≤50dB@1m
Remote monitoring: LCD touch, WiFi /4G APP & cloud, OTA upgrade
Grid‑friendly: anti‑islanding, low‑voltage ride‑through, anti‑reverse‑flow function
Main Technical Parameters
| Item | Specification |
| Battery Chemistry | LiFePO₄ |
| Nominal Energy | 10.24kWh(51.2V 200Ah) |
| Usable Energy | 9.22kWh @90% DOD |
| Operating Voltage | 44.8‑57.6VDC |
| Max Charge Current | 100‑150A |
| Max Discharge Current | 150‑200A |
| Cycle Life | ≥6000 Cycles @80% DOD |
Mechanical & Environment
| Item | Specification |
| Dimension(W×H×D) | 1000 × 580 ×217 mm |
| Weight | 125kg |
| Installation | Floor‑standing / Wall‑mounted |
| Altitude | ≤4000m |
Working Modes
Solar Self‑Consumption: Maximize photovoltaic self‑use; configure minimum SOC, anti‑reverse‑flow and surplus‑grid‑feed switch.
Peak‑Valley Arbitrage: Charge during low‑tariff valley periods and discharge at high‑tariff peak periods; configure time schedule, charge/discharge power and SOC limits.
Off‑Grid Power Supply: Operate without utility grid; support external generator via dry‑contact terminals.
UPS Backup: Supply critical loads during grid failure; configure backup load route and minimum backup SOC.
Hybrid Mode: Combine self‑consumption and peak‑valley strategies by time‑period table.
Remote Dispatch: Adapt to virtual‑power‑plant and demand‑response applications.
Our Services
·Provide complete datasheet, user manual and installation guidance documents
·Online technical support for product operation and fault troubleshooting
·Bulk order support
Q1: Can this all‑in‑one ESS system work both on‑grid and off‑grid?
A: Yes. This Likeminded hybrid energy‑storage unit supports grid‑tied, off‑grid and UPS backup modes. It achieves seamless power transfer within ≤10 ms once mains power fails, protecting your essential household or commercial loads.
Q2: How many identical energy‑storage cabinets can I connect in parallel?
A: Up to 9 units of the same model can be paralleled to expand total storage capacity and output power. All devices must run on the same firmware version to avoid circulating‑current risks.
Q3: What solar PV equipment is compatible with this all‑in‑one battery system?
A: Built‑in dual independent MPPT charge controllers accept a maximum total PV input power of 8.5 kW. It works well with most standard monocrystalline and polycrystalline solar panels within 360‑430 VDC operating voltage.
Q4: What is the cycle life and warranty policy for this LiFePO4 storage system?
A: The lithium‑iron‑phosphate battery delivers ≥6000 charge‑discharge cycles at 80% DOD. The battery warranty is 5‑10 years, while the PCS inverter and MPPT parts carry a 2‑5‑year warranty (terms depend on your contract).
Q5: Can I monitor and control the storage system remotely?
A: Absolutely. The system is equipped with WiFi / 4G communication modules. You can check real‑time data, adjust working modes and receive alarm notifications via mobile APP, cloud platform or the local LCD touch‑screen panel.

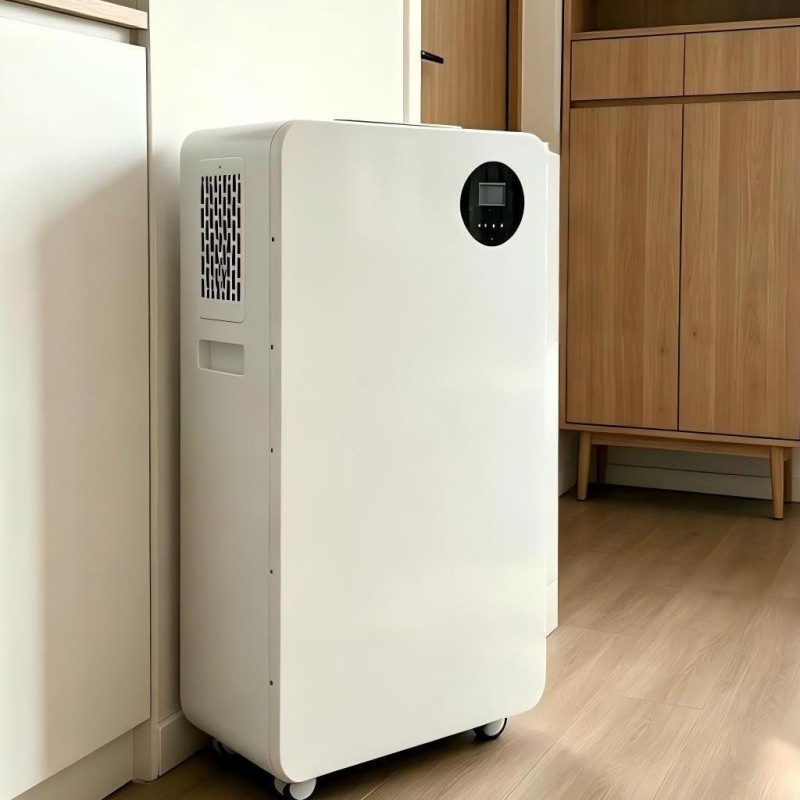

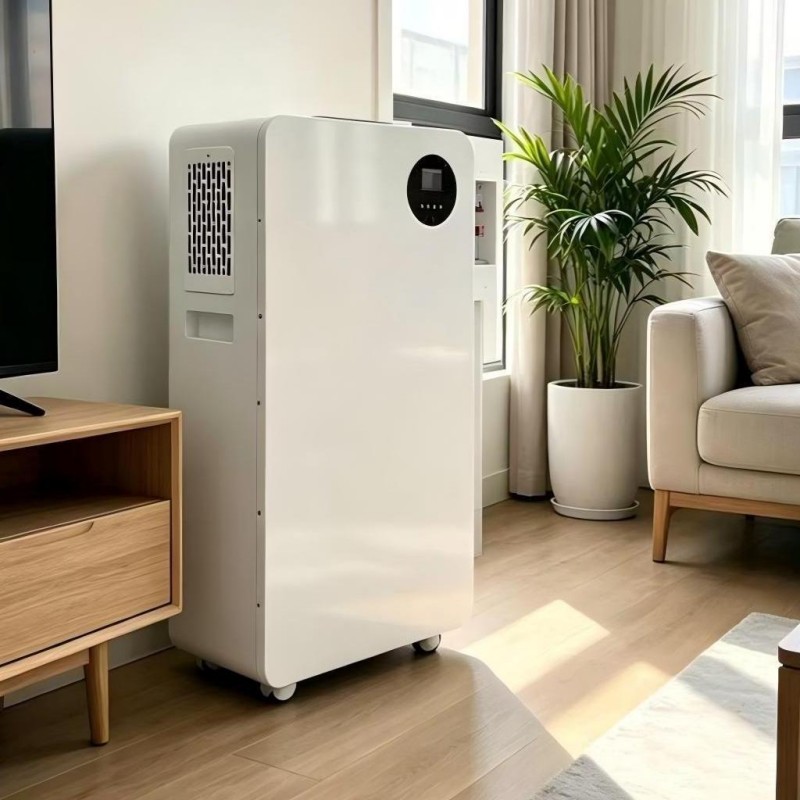

Model A: 5.12kWh Integrated System | Perfect for essential backup power, daily load shifting, and small home/solar setups. Model B: 10.24kWh Integrated System | Ideal for whole-home backup, maximizing solar self-consumption, and off-grid applications. Residential Energy Independence: Store solar energy for use day and night. Uninterrupted Home Backup: Keep lights, refrigeration, and internet on during grid outages. Off-Grid Living & Cabins: A complete, reliable power source for remote locations. Small Business & Office Backup: Ensure business continuity and protect sensitive equipment.
