Why LF230 LFP Battery Cell Is the Top Choice for Industrial Energy Storage & Power Systems

For commercial & industrial energy storage, electric power, and backup power solutions, stability, safety, cycle life, and cost efficiency are the most critical factors. The LF230 prismatic LFP battery cell has been widely recognized in global markets for its reliable performance, long service life, and strong adaptability, becoming the preferred core component for high‑demand battery systems.

Outstanding Electrical Performance of LF230 Prismatic LFP Battery Cell

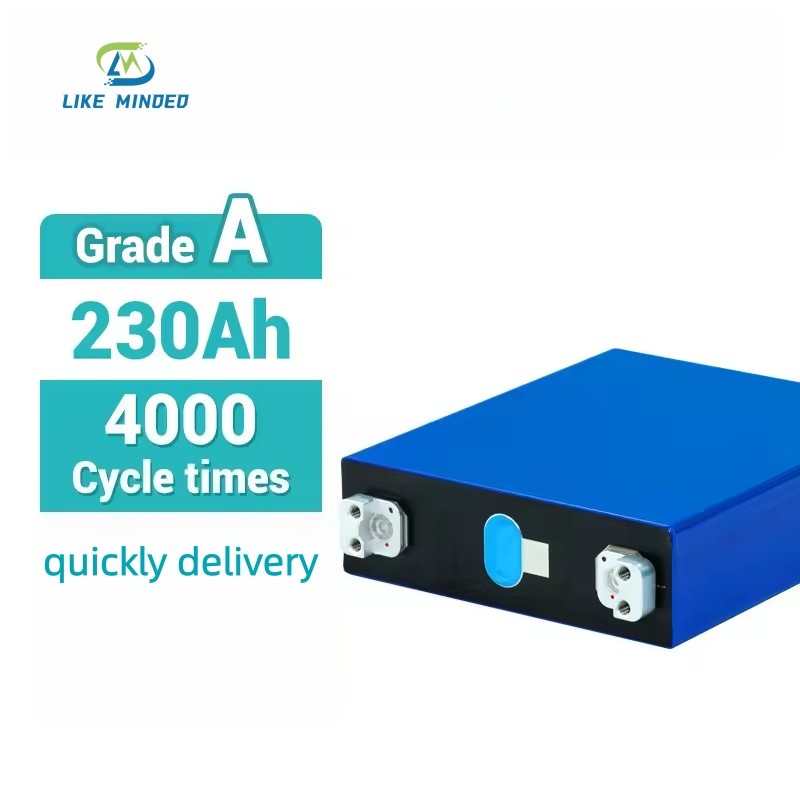

The LF230 prismatic LFP battery cell uses advanced lithium iron phosphate (LFP) chemical system and sturdy aluminum shell structure, delivering excellent and stable electrical output. It has a nominal capacity of 230Ah and nominal voltage of 3.2V, with a charging cut‑off voltage of 3.65V, providing sufficient energy density for medium and large‑scale battery systems.

In terms of charge and discharge capabilities, this cell supports a standard 0.5C charge/discharge rate for daily stable operation. It also allows 2C instantaneous charging (30 seconds) and 3C instantaneous discharging (30 seconds), satisfying high‑power bursts in industrial equipment, energy storage stations, and power applications. With low initial AC internal resistance at 0.20 mΩ ± 0.05 mΩ, the cell reduces energy loss and heat generation, improving overall working efficiency.

Ultra‑long Cycle Life of LF230 Long‑Cycle LFP Battery Cell

Long cycle life directly determines the total life and operating cost of a battery system. The LF230 long‑cycle LFP battery cell performs exceptionally well in cycle tests. At 25℃, it can achieve up to 4000 cycles while maintaining 80% SOH (state of health). Even in a high‑temperature environment of 45℃, it still reaches 2000 cycles, far exceeding the standards of ordinary lithium‑ion cells.

This ultra‑long cycle performance greatly reduces the frequency of battery replacement and lowers maintenance costs, making the 230Ah 3.2V LiFePO4 battery cell extremely cost‑effective for long‑term investment projects such as industrial energy storage, base station backup power, and vehicle power systems.

High Safety & Wide Temperature Adaptability

Safety is non‑negotiable in battery applications, especially for commercial and industrial scenarios. The LF230 high‑safety LFP battery cell has passed a full set of rigorous safety tests, including overcharge, over‑discharge, external short circuit, heating, temperature cycling, and crushing. In all abuse tests, the cell shows no fire, no explosion, ensuring high security for system applications.

In addition, this cell has an extremely wide operating temperature range: charging from ‑10℃ to 65℃ and discharging from ‑35℃ to 65℃. Whether in cold high‑altitude areas or high‑temperature industrial environments, the LF230 LFP battery cell maintains stable discharge capacity and reliable performance, greatly expanding its application scope.

Excellent Storage & Stability Performance

For energy storage systems and backup power supplies, storage performance is a key indicator. The LF230 230Ah LFP battery cell shows high capacity retention and recovery rate after long‑term storage. After 28 days at 25℃, capacity retention remains above 96%, and capacity recovery exceeds 97%. Even under 45℃ high‑temperature storage, it still maintains excellent stability, avoiding rapid capacity attenuation.

With a recommended storage SOC of 15%–40% and proper storage conditions, the cell can maintain good performance for a long time, reducing performance loss caused by placement and transportation.

Wide Application Fields of LF230 LFP Battery Cell

With its comprehensive advantages in performance, safety, and life, the LF230 LFP battery cell is widely used in many fields:



Industrial & commercial energy storage systems



Large‑scale backup power supplies



Electric vehicle power systems



Industrial power equipment and tools

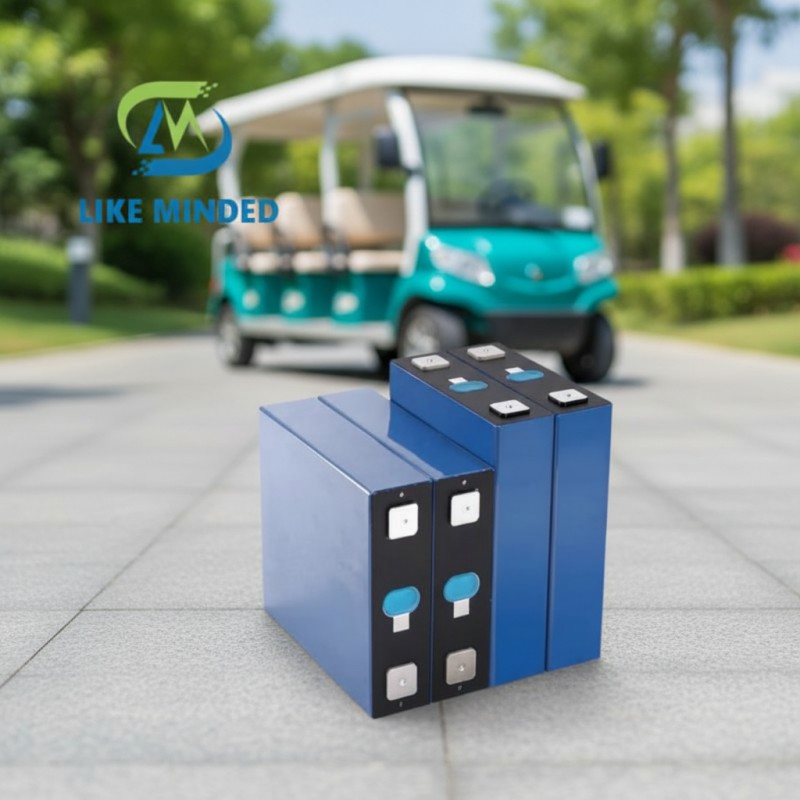

Low‑speed electric vehicles and AGV vehicles



New energy grid‑connected energy storage



It supports convenient module integration, with clear dimension design and standard compression force configuration, making assembly and production more efficient and reliable.

Why Choose Our LF230 Prismatic LFP Battery Cell

We focus on providing high‑quality, stable, and reliable LF230 prismatic LFP battery cell for global B‑end customers. Our products feature complete parameters, strict quality control, and consistent performance, suitable for mass applications and long‑term cooperation.

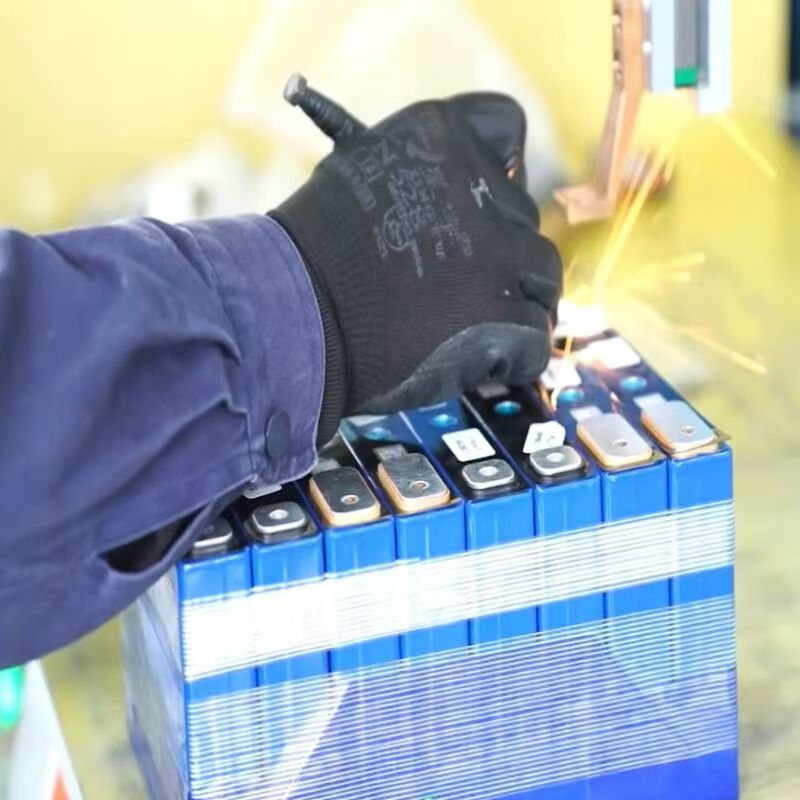

We also provide professional technical support, including module design suggestions, welding parameter guidance, and application solutions, helping you build safer, more efficient, and longer‑life battery systems.

If you are looking for a high‑performance, high‑safety, long‑cycle‑life, and cost‑effective LFP battery cell, the LF230 LFP battery cell will be your best choice.

FAQ

1. What is the LF230 prismatic LFP battery cell?

LF230 prismatic LFP battery cell is a 3.2V 230Ah square aluminum-shell lithium iron phosphate battery cell. It has high safety, stable performance, low internal resistance and long cycle life, and is widely used in industrial energy storage, power systems, backup power and other high-demand scenarios.

2. What are the core specifications of the 230Ah 3.2V LiFePO4 cell?

The 230Ah 3.2V LiFePO4 cell has a nominal voltage of 3.2V and a nominal capacity of 230.0Ah. The standard charge-discharge rate is 0.5C, the charge cut-off voltage is 3.65V, and the discharge cut-off voltage is 2.5V (T>0℃) or 2.0V (T≤0℃). The initial AC internal resistance is 0.20mΩ±0.05mΩ, and the weight is 4140g±124g, with stable and reliable electrical performance.

3. How about the cycle life of the LF230 long-cycle LFP battery cell?

The LF230 long-cycle LFP battery cell has excellent cycle life. It can reach up to 4000 cycles at 25℃ and 2000 cycles at 45℃ while maintaining 80% SOH. Such a long cycle life greatly reduces the replacement and maintenance costs of the battery system and improves the cost performance of long-term projects.

4. What is the operating temperature range of the LF230 LFP battery cell?

The LF230 LFP battery cell supports a wide operating temperature range. The charging temperature is -10℃ to 65℃, and the discharging temperature is -35℃ to 65℃. It can maintain stable discharge capacity in both low-temperature and high-temperature environments and adapt to complex working conditions all over the world.

5. Is the LF230 high-safety LFP battery cell safe enough?

Yes. The LF230 high-safety LFP battery cell has passed a number of strict safety tests, including overcharge, over-discharge, external short circuit, heating, temperature cycling and crush. There is no fire or explosion in all tests, which can provide reliable safety protection for energy storage systems and power equipment.

6. What are the storage requirements for the LF230 230Ah LFP battery cell?

The LF230 230Ah LFP battery cell is recommended to be stored with 15%–40% SOC, at a temperature of 0℃–35℃ and relative humidity ≤60%. If stored for more than 3 months, a standard charge-discharge cycle is recommended to maintain good battery performance.

7. What applications is the LF230 prismatic LFP battery cell suitable for?

The LF230 prismatic LFP battery cell is widely used in industrial and commercial energy storage systems, backup power supplies, electric vehicles, AGVs, low-speed vehicles, industrial power equipment, new energy grid-connected energy storage and other fields. It is easy for module integration and series-parallel connection.

8. How to extend the service life of the LF230 LFP battery cell?

To extend the service life of the LF230 LFP battery cell, please use the standard 0.5C charge-discharge mode, avoid overcharge and over-discharge, control the battery temperature within a reasonable range, and equip a professional BMS to monitor and protect voltage, current and temperature in real time.
