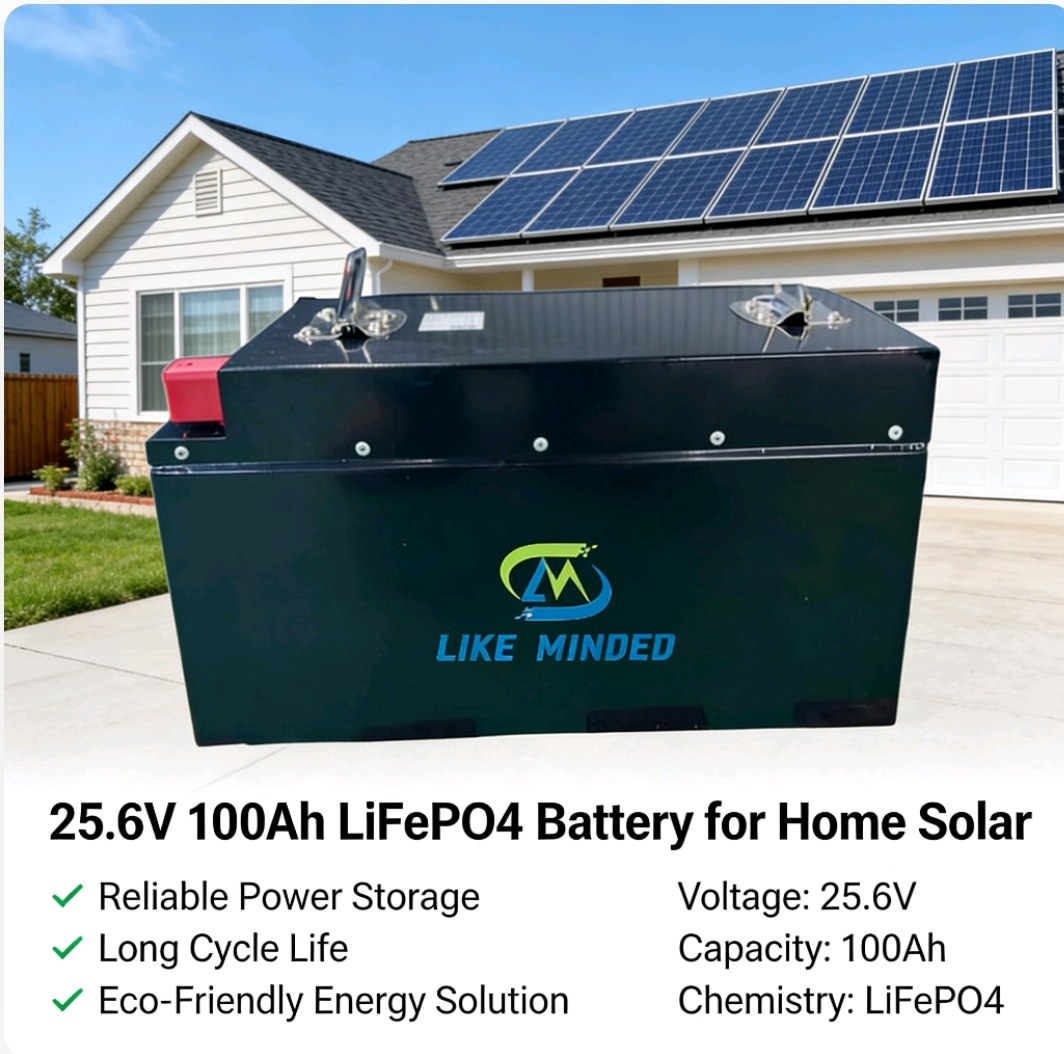

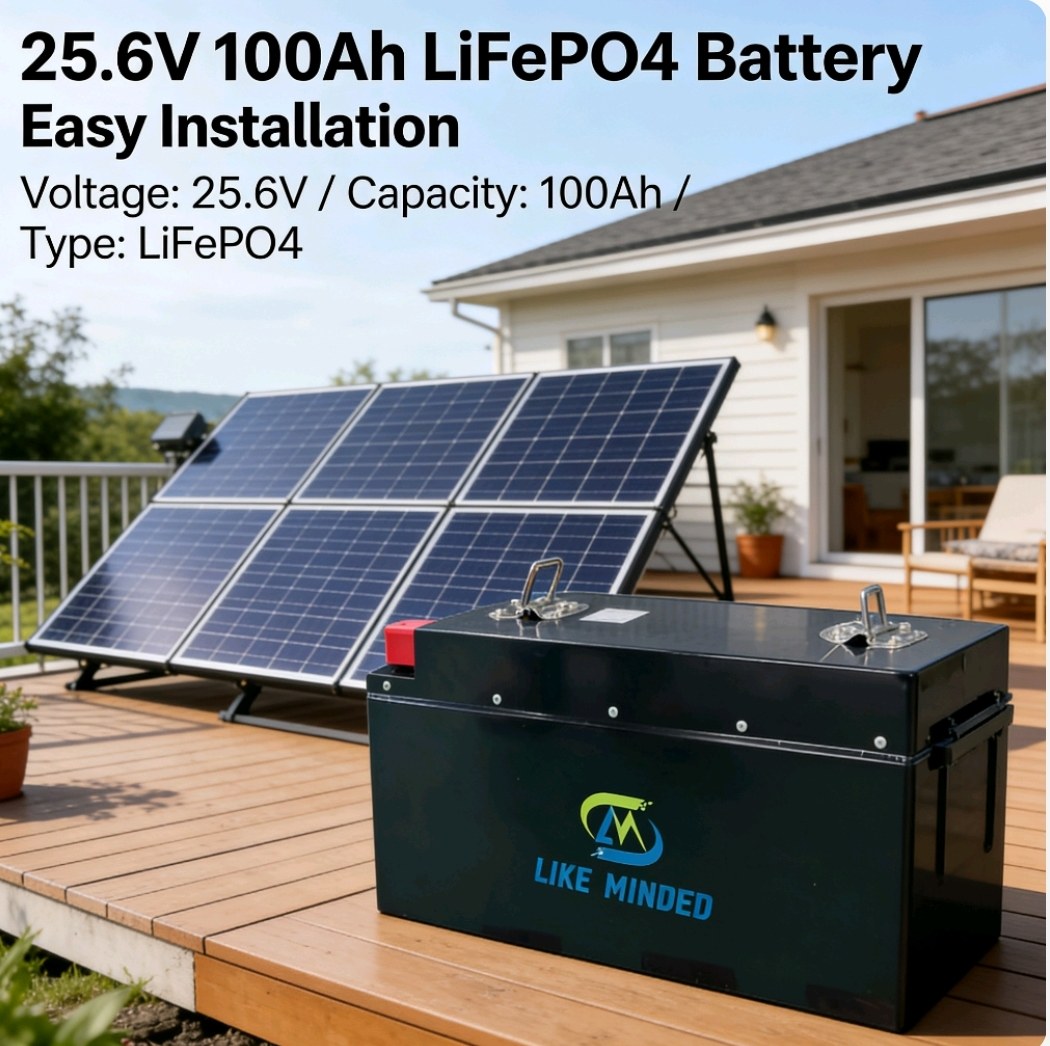

How to Choose 25.6V 100Ah LiFePO4 Battery for RV & Off-Grid Solar – Complete Buying Guide

If you need stable power supply for RV camping, off-grid residential solar or small industrial backup, 25.6V 100Ah LiFePO4 battery is a mainstream upgrade to lead-acid batteries. This guide covers core parameters, safety standards, charging rules, storage requirements and matching tips, helping overseas buyers avoid wrong purchases and safety risks. All technical data is based on official product specifications.

 Core Technical Parameters You Must Check Before Purchase

Nominal voltage: 25.6V, charging voltage 29.2V±0.05V, factory open-circuit voltage 26–27V, compatible with most 24V inverters & solar controllers



Capacity: Cell rated 104Ah, minimum guaranteed capacity ≥102Ah under 0.5C discharge



Protection configuration: Independent single-cell BMS monitoring, overcharge 3.65±0.05V, over-discharge cut-off 2.5V±0.1V, 150–200A instant overcurrent protection, auto-recovery short-circuit protection



Cycle life: Over 2000 full charge-discharge cycles, 5-year factory warranty (excluding rental & commercial operation packs)



Dimension & weight: 310260190mm (without handle), approx 21kg (±5% tolerance), M8 terminal for wiring



Temperature range: Charge 0~45℃, discharge -20~60℃, storage -10~40℃ (optimal 25±5℃)





Suitable Application Scenarios & Power Matching Tips



This battery pack CANNOT be connected in series or parallel. It fits low-to-medium power 24V DC systems:



• Off-grid home solar storage: Daily lighting, refrigerator, router, small household appliances



• RV, caravan & small yacht power supply: Daily living electrical equipment for long-distance travel



• Outdoor construction monitoring & field testing instruments



• Small industrial equipment emergency backup power



Max continuous discharge current ≤200A, match loads below 5kW 24V inverter.



Charging Mode & Daily Operation Rules



Adopt CC/CV constant current constant voltage charging, two charging options available:



Standard charging: 20A current, fully charged in 5.5 hours



Fast charging: 50A current, fully charged within 2.5 hours



Prohibited to charge over 24h continuously; only matched dedicated charger is allowed.



Storage Standard to Extend Service Life

• Keep SOC at 40%–50% for long-term storage







• Recharge the pack every 3 months during storage







• Max storage period after warehousing: 24 months; re-inspect all expired batteries before delivery







• Store in dry, ventilated room, far away from fire, heat and corrosive materials





 Critical Safety Restrictions Users Must Follow

• Do not disassemble, weld, puncture, burn or immerse the battery in water

• Avoid positive-negative short circuit; do not store together with metal parts

• Do not charge under direct sunlight or near open flame

• Do not use for unmatched equipment to avoid damage & hidden dangers

• Waste batteries need professional recycling, never throw into fire or water

Real User Application Case Data

Case 1: Off-grid mountain cabin solar system

1 set 25.6V100Ah LiFePO4 matches 1.5kW solar panel, supports 8 hours daily lighting & refrigerator use, stable operation for over 3 years, capacity attenuation less than 15%.

Case 2: Full-time RV travel power supply

Daily use of air conditioner, water pump, kitchen appliances; charge via solar panel during daytime, fast charging works well when parking at charging stations, no swelling or safety failure after 1200 cycles.

FAQ

Q1: Can I connect multiple 25.6V 100Ah batteries in series or parallel?

A1: No. This pack’s internal protection circuit does not support series or parallel connection. Improper connection will cause BMS failure, capacity imbalance and fire risks.

Q2: What’s the service life of this battery?

A2: Over 2000 full charge-discharge cycles, 5-year factory warranty (commercial rental batteries excluded). Proper storage & operation can extend service life to 6–8 years.

Q3: Is it compatible with old 24V lead-acid inverters?

A3: Yes. Its charging voltage 29.2V and discharge voltage range match mainstream 24V inverters & solar controllers for lead-acid systems.

Q4: How to store the battery for over half a year?

A4: Adjust SOC to 40%-50%, store at 25±5℃, recharge every 3 months, wrap with non-conductive insulation material, keep away from metal tools.

Q5: Can I charge the battery in low temperature below 0℃?

A5: Charging environment must stay above 0℃; discharging supports -20℃ low temperature. Charging under 0℃ will cause permanent capacity loss.
